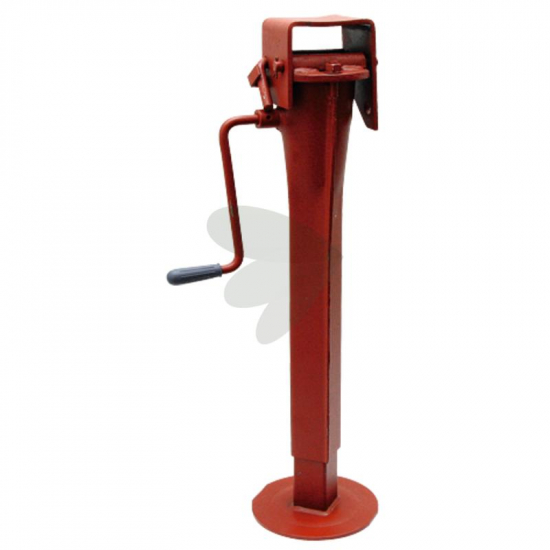

Trailer Support Leg 4000kg, Adjustment 400mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID220DN514S

  ManufacturerSIMOL

  CharacteristicsWith side crank and foldable mounting part

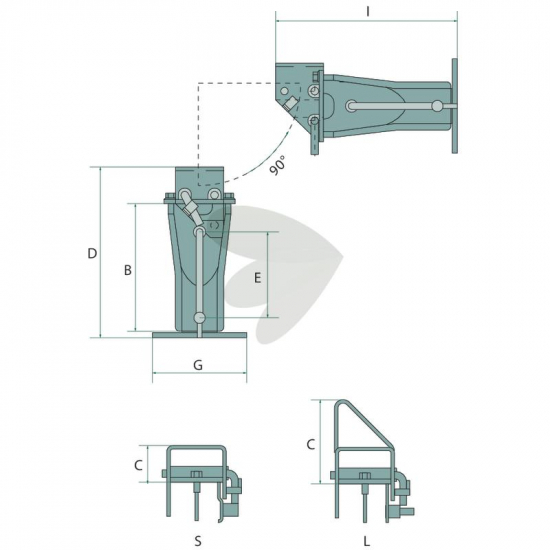

  B (mm): 630
  C (mm): 70
  D (mm): 735
  E (mm): 220
  G (mm): 220
  I (mm): 760
  Application: Agricultural machines and trailers
  Construction machinery
  Snow clearing machines
  Mounting: Weld-on plate
  Crank: Side
  Max. static load capacity (kg): 4000
  Spindle lift (+/- 10): 400
  Type: DN 514S
  Design: Primed
  Equipment: With foldable mounting part
  Ergonomic handle, patented system
  Surface: Primed
  Outer Ø (mm): ? 70
