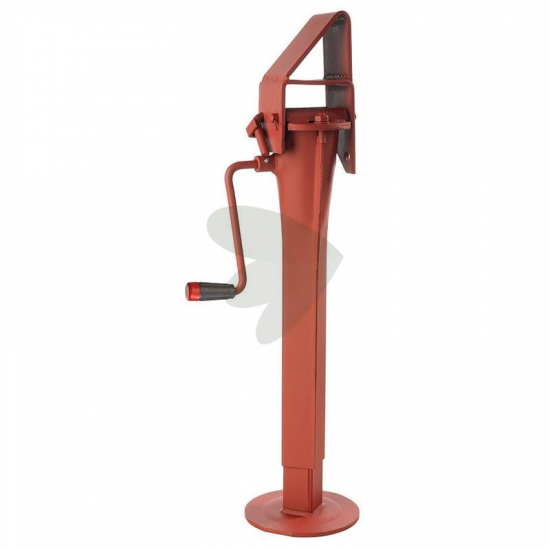

Trailer Support Leg 4000kg, Adjustment 400mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID220DN514L_1

  ManufacturerSIMOL

  CharacteristicsFoldable trailer jack with side crank

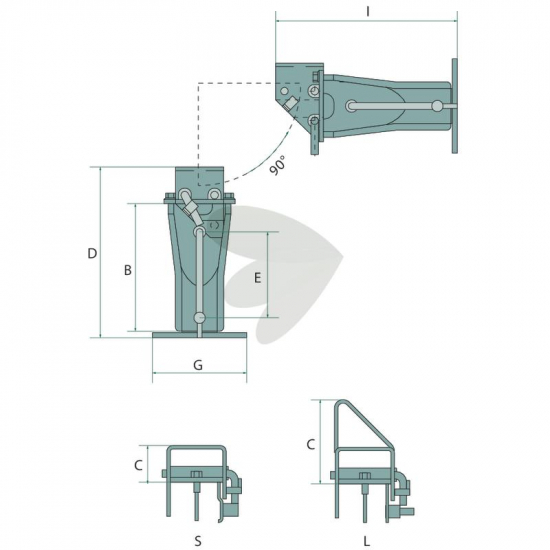

  B (mm): 630
  C (mm): 185
  D (mm): 850
  E (mm): 220
  G (mm): 220
  I (mm): 760
  Application: agricultural machines and trailers
  construction industry machines
  snow removal machines
  Mounting: weld-on plate
  Crank: side operation
  Max. static load capacity (kg): 4000
  Spindle stroke (+/- 10): 400
  Type: DN 514L/1
  Design: primed
  Equipment: with foldable mounting part
  ergonomic handle, patented system
  Surface: primed
  Outer Ø (mm): Ø 70
