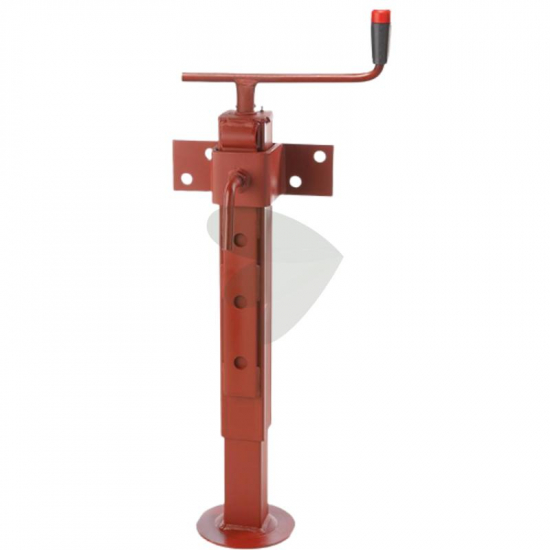

Trailer Support Leg 600kg, Adjustment 325mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID220PE580

  ManufacturerSIMOL

  CharacteristicsWith horizontal crank and adjustable mounting part

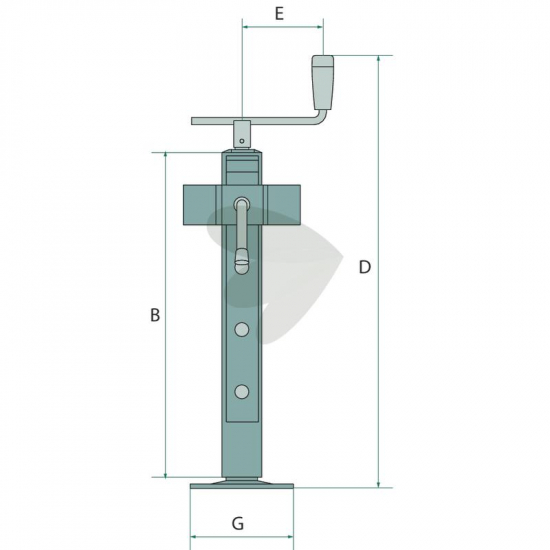

  B (mm): 500
  D (mm): 670
  E (mm): 125
  G (mm): 160
  H (mm): 288
  Application: Agricultural machines and trailers
  Construction machinery
  Snow clearing machines
  Mounting: Flange plate
  Crank: Horizontal
  Max. static load capacity (kg): 600
  Spindle lift (+/- 10): 325
  Type: PE 580
  Design: Primed, with mounting plate
  Equipment: With adjustable mounting part
  Ergonomic handle, patented system
  Surface: Primed
  Outer Ø (mm): 60
