Swivel plug connector 8X15X22

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID30615ZS1904

  Manufacturer

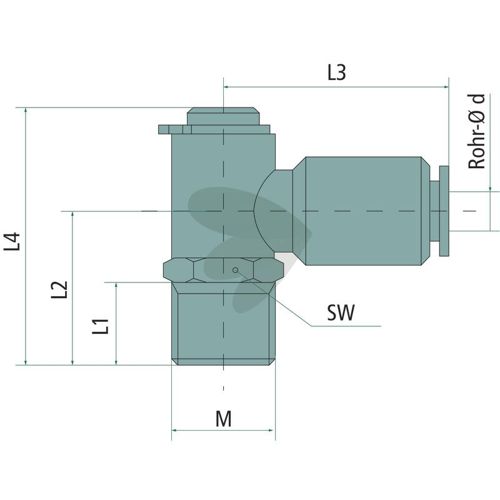

  CharacteristicsL1 (mm): 8
  L2 (mm): 15
  L3 (mm): 22

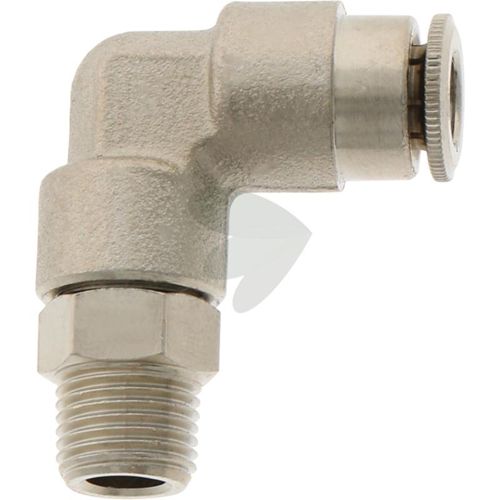

  Swivel plug connector 8X15X22 for easy and stable connection.

  L4 (mm): 24
  Material: Brass, nickel-plated
  Pipe D (mm): 6
  S (mm): 11
  Design: with plug connection HP version
  L2 (mm): 15
  Technical Information: Pressure range: max. 150 bar Temperature range: -20°C to +70°C
  Thread 1 (mm): M8x1k
  L1 (mm): 8
  L3 (mm): 22
