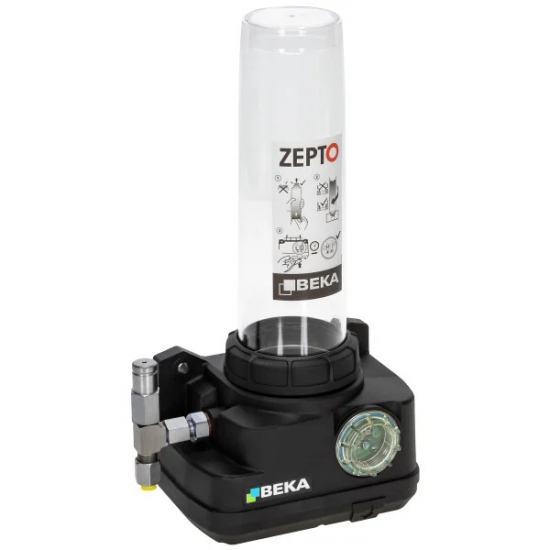

Zepto Central Lubrication Pump 12/24V

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKVZEPTO

  Manufacturer

  Characteristics12/24V
  Max. pressure: 290 bar

  - Easy-to-use electric lubrication pump
  - Can be powered by 12 V or 24 V
  - For individual lubrication points or up to 30 lubrication points with a progressive system
  - For small and medium-sized machines and systems
  - The lubrication pump is supplied with grease from a separate cartridge, making refilling easy, quick and clean
  - Suitable for lubricants NLGI 000 - NLGI 2
  - Can be used with the following cartridge standards: S (Lube-Shuttle®) / L (Ritter grease cartridge 400 ml) / F (System Reiner)
  - Built-in control system
  - Operating modes: time control, adjustable time period (0,5 to 9 h) / continuous
  - Functions: adjustable pump time (0,5 - 9 min)
  - Steel mechanism with robust plastic housing
  - Power connector 4-pin Deutch
  - Pump model 10142862
  - Voltage 12 - 24 V
  - Max. pressure 290 bar
  - Outlet for 6 mm tube
  - Pump output 0,9 cm³ / min
  - Operating temperature -25...+70 °C
  - Protection class IP69K

  Supplied with:
  - ZEPTO with cartridge adapter type S (Lube-Shuttle®), operating and installation instructions
  - Note! does not include grease cartridge or Deutsch cable
