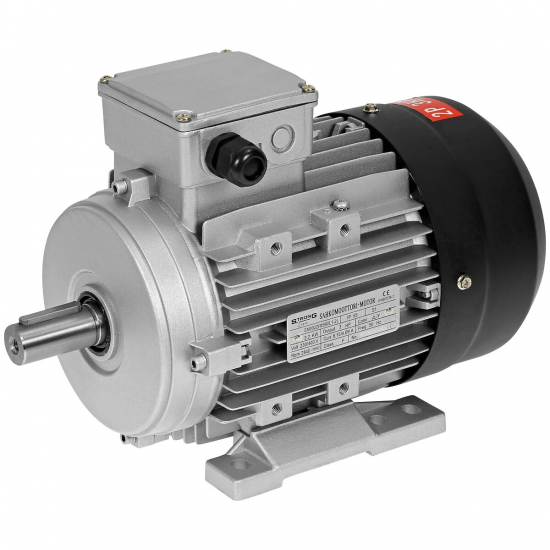

Electric motor 230/400V 2.2Kw 2840 rpm B3

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSM0022

  ManufacturerSTRONGLINE

  Characteristics

  - power 2.2 kW / 3 hp
  - voltage 230/400 V
  - speed 2840 rpm
  - current 4.69 A
  - protection class IP55
  - insulation class F
  - shaft Ø 24 x L 50 mm
  - mounting type B3 (distance between mounting holes 140 x 100/125 mm, hole Ø 10 mm)

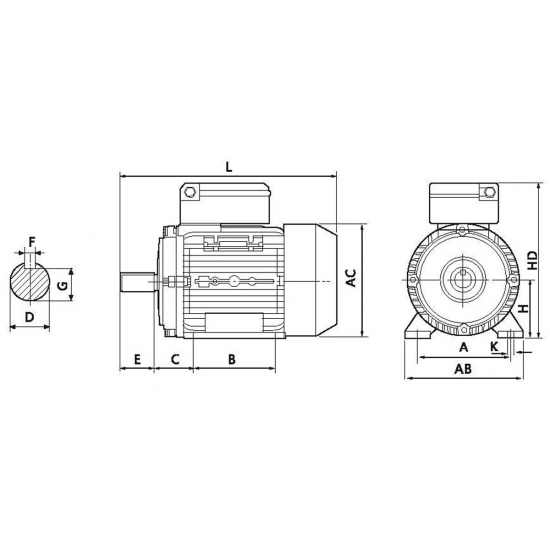

  Dimensions (mm):
  - A 140
  - B 125
  - C 56
  - D 24
  - E 50
  - F 8
  - G 20
  - H 90
  - K 10
  - AB 180
  - AC 185
  - AD 145
  - HD 235
  - L 360
