ATS Box KS ATS 4/63D Inverter

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKSATS4_63DI

  ManufacturerKönner & Söhnen

  Characteristics

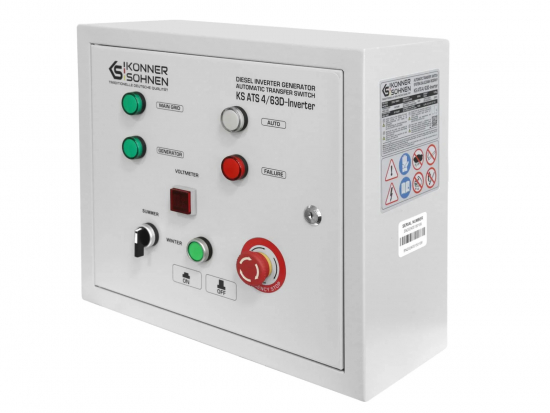

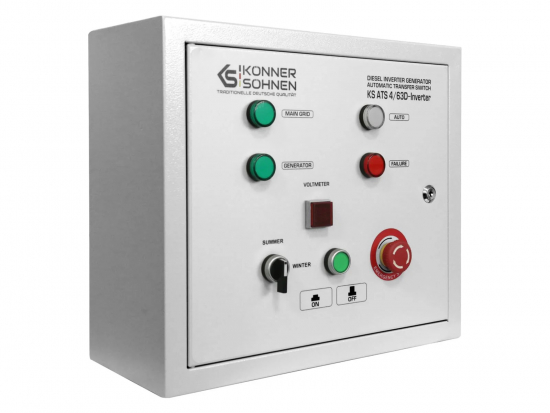

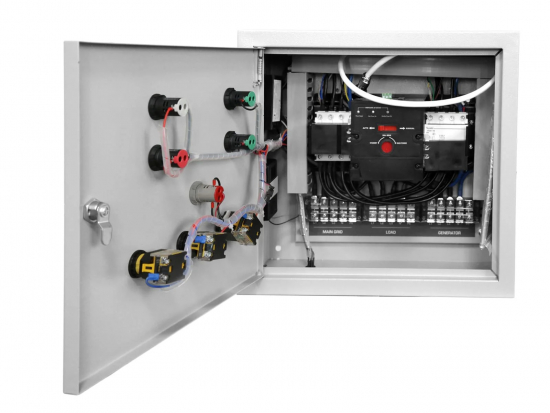

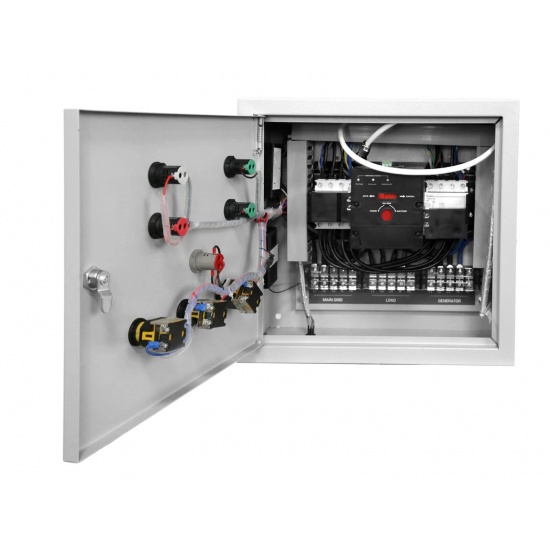

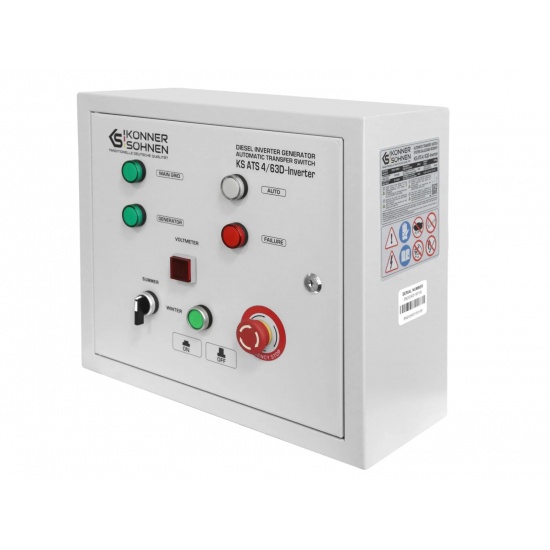

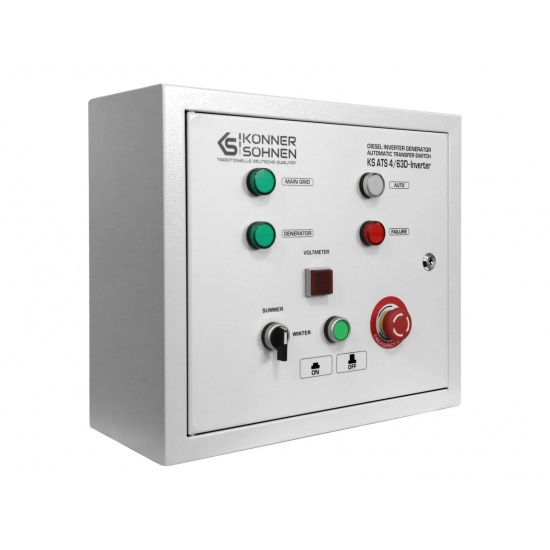

  The automatic transfer switch (ATS) KS ATS 4/63D-Inverter by the German brand Könner & Söhnen automatically starts the generator, connects the load to it when the main power source is disconnected, and automatically stops the generator when the central grid is restored.

  The ATS unit has summer and winter operating modes, allowing you to select the heating time for the air heating system. It is equipped with a voltmeter and an emergency stop button for the generator. The ATS unit can operate in both automatic and manual modes.

  The KS ATS 4/63D-Inverter model is suitable for the diesel inverter generators "Könner & Söhnen" KS 6100iDE ATSR and KS 9500iDE ATSR.

  Advantages:

  • The universal design allows the ATS to be used in both single-phase and three-phase networks, with an 8-pin control cable connector.
  • Equipped with a voltmeter.
  • Emergency stop button for the generator, providing an additional safety option.
  • Keeps the battery charged.
  • Summer and winter operating modes.

  Technical specifications:
  Power (230V): 14.5 kW
  Current (max) 230 V: 63 A
  Power (400V): 41.5 kW
  Current (max) 400 V: 63 A
  Operating environment: from -10°C to +55°C; humidity ≤60%
  Storage environment: from -10°C to +70°C; humidity ≤60%
  Insulation class: F
  Maximum battery charging current from built-in power supply: 3 A
  Control cable length: 3 m
  Voltage: 230/400 V
  IP protection class: IP21
  Net dimensions (LxWxH): 430×195×393 mm
  Gross dimensions (LxWxH): 450×215×415 mm
  Net weight: 9.3 kg
