Petrol Generator KS 10000E 1/3

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKS10000E1_3

  ManufacturerKönner & Söhnen

  CharacteristicsPower (kW): 8

  VTS SYSTEM
  The unique innovative VTS (Voltage Transfer Switch) phase switching system provides equal power for both single-phase (230V) and three-phase (400V) consumers. Each mode has its own circuit breaker.

  KÖNNER & SÖHNEN ENGINES
  Each Könner & Söhnen engine has an additional power reserve, ensuring that the generators deliver the declared output reliably.

  INDIVIDUAL SERIAL NUMBERS
  Könner & Söhnen engines meet all global and European quality standards, including the latest EURO V emission requirements. This is confirmed by European quality certificates. Each engine and generator has its own individual serial number, allowing control of production and service quality. The engines feature easy starting and low vibration. The KS 10000 series is equipped with a reliable single-cylinder 18 hp petrol engine.

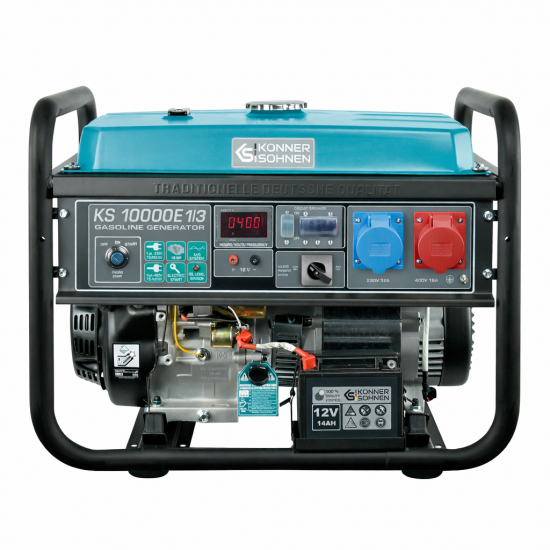

  CONVENIENT ERGONOMIC CONTROL PANEL
  The ergonomic panel allows easy operation of the generator without special skills. The modern intelligent LED display always shows operating hours, frequency and voltage, helping to control load and perform timely maintenance.

  EQUIPMENT
  The generator panel is equipped with ergonomic connections for both single-phase and three-phase consumers. High-current sockets are made of high-quality heat-resistant plastic.

  SYNCHRONOUS GENERATOR
  The synchronous generator with integrated intelligent AVR system is specially designed for single-phase and three-phase operation without power loss. The high-quality copper winding can withstand prolonged extreme loads.

  EASY START SYSTEM
  The easy-start system allows quick engine start with minimal effort. The generator features both manual and electric start.

  GENERATOR WITH 100% COPPER WINDING
  Könner & Söhnen generators are equipped with a high-quality synchronous generator with 100% copper winding, capable of withstanding maximum loads and ensuring long-term reliable operation.

  STEEL FUEL TANK
  Könner & Söhnen generators are equipped with an enlarged steel fuel tank, extending operating time without refuelling. The fuel level indicator is integrated into the tank.

  REINFORCED STEEL FRAME
  This model is equipped with a strong steel frame with a diameter of ø 32 mm, protecting the generator and facilitating transportation.

  VIBRATION DAMPING
  The generator is equipped with rubber feet to reduce vibration and protect the surface.

  Technical specification:
  Voltage, V: 230/400
  Max/rated power (230V), kW: 8.0/7.5
  Max/rated power (400V), kW: 8.0/7.5
  Power factor, cosφ: 1 (230V)/0.8 (400V)
  Frequency, Hz: 50**
  Current (max) 230/400 V, A: 34.78/14.45
  Sockets: 1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A
  Fuel tank volume, l: 25
  Running time at 50% load, h: 15
  LED display: Voltage, frequency, operating hours
  Noise level Lpa (7m)/Lwa, dB: 71/96
  DC output, V/A: 12/8.3
  Engine model: KS 440
  Engine type: Petrol-powered single-cylinder, four-stroke air-cooled
  Engine power, hp/kW: 18.0/13.24
  Fuel type: Petrol
  Engine oil volume, l: 1.2
  Engine displacement, cm3: 440
  Voltage regulation: Intelligent AVR system
  Engine start: Manual/electric
  Generator winding: Copper
  Protection class: IP23M
  Net dimensions (LxWxH), mm: 680x545x550
  Gross dimensions (LxWxH), mm: 700x545x590
  Net weight, kg: 88
  Gross weight, kg: 90.0

  NOTE! The product is sold without engine oil or petrol. Before first start, engine oil for four-stroke petrol engines must be added. We recommend 10W-30 or 10W-40 oil. Always check the oil level before use. Use only unleaded petrol with an octane rating of 90–95 containing no more than 10% ethanol.
