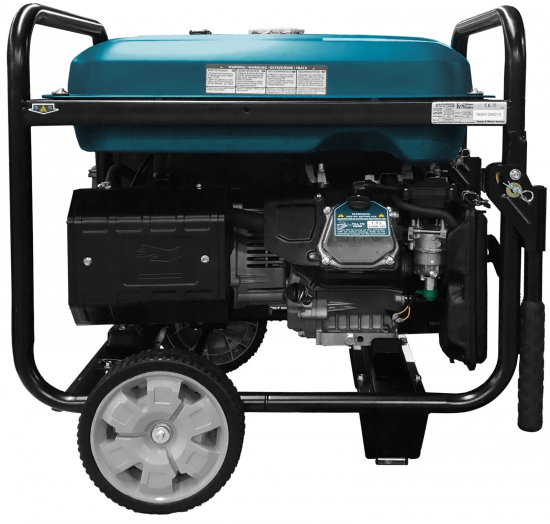

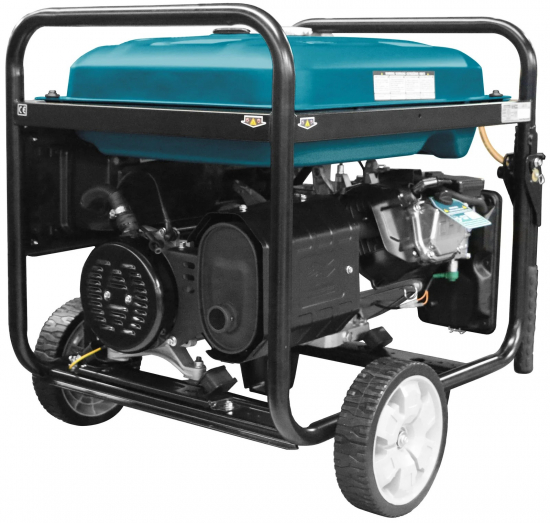

Petrol Generator KS 12-1E 1/3 ATSR

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKS12-1E1_3ATSR

  ManufacturerKönner & Söhnen

  CharacteristicsPower (kW): 8.2/11.5

  HIGH-PERFORMANCE ENGINE
  Powerful and reliable 1-cylinder air-cooled engine (18.5 hp), high-performance and cost-effective, meeting European quality standards (including emissions and noise). Each engine features a K&S company stamp and an individual serial number for production and service quality control.

  EASY START SYSTEM
  The easy-start system allows quick engine start with minimal effort. More powerful models are additionally equipped with electric start.

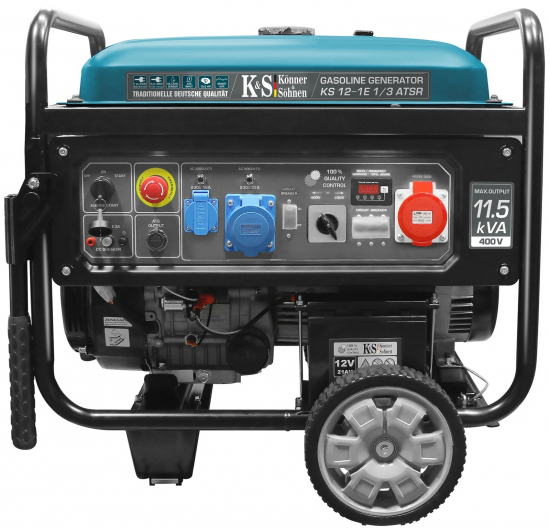

  ERGONOMIC CONTROL PANEL
  The user-friendly ergonomic control panel enables easy operation of the entire unit without special skills and is equipped with sockets for full power output and a modern LED display (hour meter, frequency, voltage, oil alarm). The panel also includes an emergency stop switch.

  ATS OUTPUT
  The ATS unit (Automatic Transfer Switch) automatically starts the generator and transfers the load when the main power supply is disconnected, and automatically stops the generator when the mains power is restored.

  GENERATOR WITH 100% COPPER WINDING
  Könner & Söhnen generators are equipped with a high-quality synchronous generator with 100% copper winding, capable of withstanding maximum loads and ensuring long-term reliable operation.

  STEEL FUEL TANK
  Könner & Söhnen generators are equipped with an enlarged steel fuel tank (55 l), extending operating time without refuelling. The fuel level indicator is integrated into the tank.

  Technical specification:
  Voltage, V: 230/400
  Max/rated power (230V), kW: 8.2/8.0
  Power factor, cosφ: 1 (230V)/0.8 (400V)
  Max/rated power (400V), kVA: 11.5/11.25
  Frequency, Hz: 50**
  Current (max) 230/400 V, A: 35/17
  Sockets: 1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 400 V 32 A
  Fuel tank volume, l: 55
  LED display: Voltage, frequency, operating hours, oil alarm
  Noise level Lpa (7m)/Lwa, dB: 71/96
  DC output, V/A: 12/8.3
  Engine model: KS 650
  Engine type: Petrol-powered single-cylinder, four-stroke air-cooled
  Engine power, hp/kW: 18.5/13.6
  Fuel type: Petrol
  Engine oil volume, l: 1.4
  Engine displacement, cm3: 625
  Voltage regulation: Intelligent AVR system
  Engine start: Manual/electric
  Battery (Ah): 21
  Generator winding: Copper
  Protection class: IP23M
  Net dimensions (LxWxH), mm: 790x705x680
  Gross dimensions (LxWxH), mm: 800x715x780
  Net weight, kg: 120
  Gross weight, kg: 170.0**_
