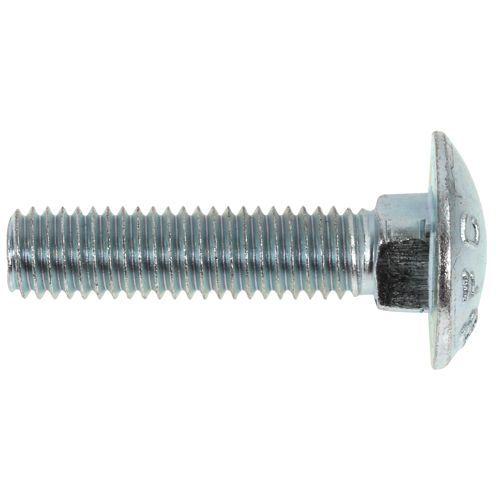

Carriage Bolt M10X40 8.8 Din603
€1
Incl. VAT
- Info
-
Stock statusProduct IDPL1004088ManufacturerCharacteristicsStrength class: 8.8
Thread: M10 x 1.5
Length (mm): 40
Material: Steel
Coating: Electro zinc-plated
DIN: DIN 603
Packaging length (cm): 2.5
Packaging width (cm): 2.5
Packaging height (cm): 4.5
Gross weight (kg): 0.032000
EAN: 6418914182189- galvanized

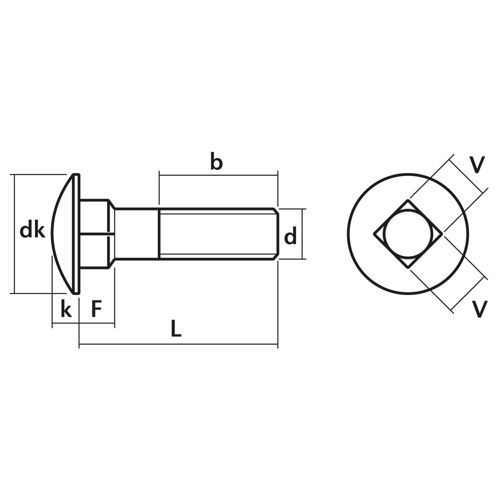

- DIN 603 carriage bolt
- strength class 8.8
- thread (d) M10 x 1.5
- length (L) 40 mm
- thread length (b) min. 26 mm
- head diameter (dk) max. 24.65 mm
- head height (k) max. 5.38 mm
- square (V x V x F) max. 10.58 x 10.58 x 6.6 mm - Product groups
-
