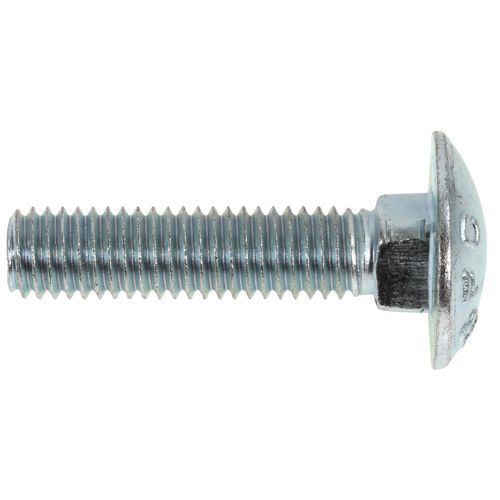

Carriage Bolt M16X50 10.9 Din603

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDPL16050109

  ManufacturerPGB

  CharacteristicsStrength class: 10.9
  Thread: M16 x 2.0
  Length (mm): 50
  Material: Steel
  Coating: Electro-galvanized
  DIN: DIN 603
  Packaging length (cm): 6
  Packaging width (cm): 1.6
  Packaging height (cm): 1.6
  Gross weight (kg): 0.121000
  EAN: 6418914914131

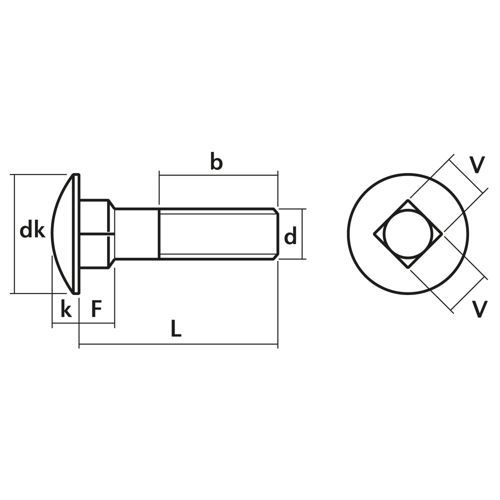

  - galvanized
  - DIN 603 carriage bolt
  - strength class 10.9
  - thread (d) M16 x 2.0
  - length (L) 50 mm
  - thread length (b) min. 38 mm
  - head diameter (dk) max. 38.8 mm
  - head height (k) max. 8.95 mm
  - square (V x V x F) max. 16.7 x 16.7 x 12.9 mm
