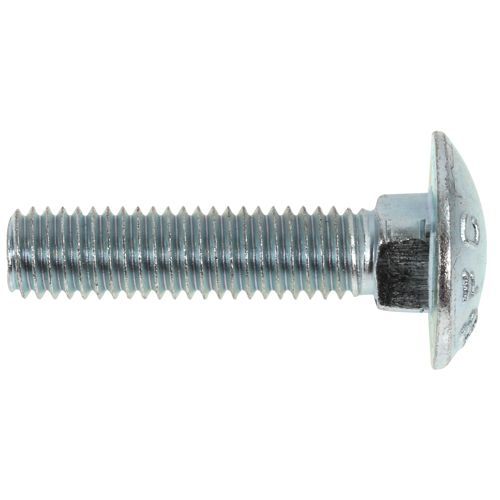

Carriage bolt M5X30 5pcs Din603 A2

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDIP717

  Manufacturer

  CharacteristicsStrength class: A2-70
  Thread: M5 x 0.8
  Length (mm): 30
  Material: Stainless steel
  Coating: A2 / Aisi 304
  DIN: DIN 603
  Packaging length (cm): 7.4
  Packaging width (cm): 1.5
  Packaging height (cm): 13.5
  Gross weight (kg): 0.037000
  EAN: 8019725071709

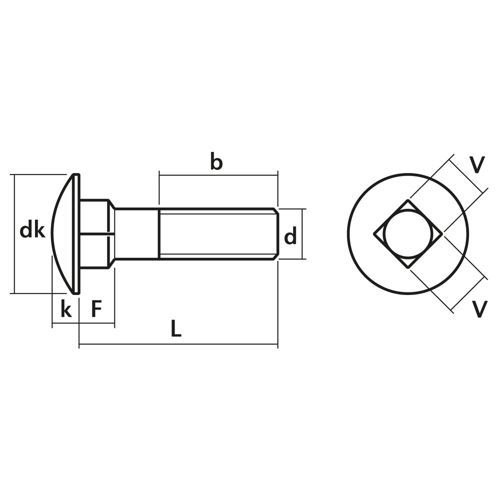

  - stainless steel A2 / AISI 304
  - DIN 603 carriage bolt
  - strength class A2-70
  - thread (d) M5 x 0.8
  - length (L) 30 mm
  - thread length (b) min. 16 mm
  - head diameter (dk) max. 13.55 mm
  - head height (k) max. 3.3 mm
  - square (V x V x F) max. 5.48 x 5.48 x 4.1 mm
  - 5 pcs / packaging
