2-channel winch radio remote control 12/24 VDC
€631
Incl. VAT
- Info
-

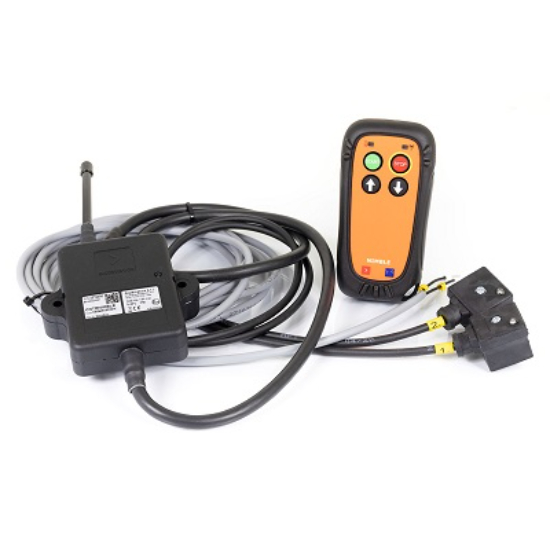

Stock statusProduct IDB548900ManufacturerES HydagentCharacteristicsCompact, convenient 2-channel radio remote control for operating one double-acting function or two magnets. The system consists of the ergonomic Nimble radio transmitter and compact CNTR4 receiver. An ideal solution for wireless control of machine and equipment functions.
The transmitter is made from durable material that protects the unit if accidentally dropped. The ergonomic rubber housing provides a secure, comfortable grip. LED indicators show radio transmission and warn of low battery level. The compact receiver has an IP68 protection rating and is easy to install on the machine.
FEATURES AND BENEFITS
- 2-channel radio control for one double-acting function or two magnets
- 4 buttons: 2 for on/off and 2 for activating function 1 or 2
- Robust, ergonomic transmitter with rubber housing
- Easy replacement of a damaged or lost transmitter
- Each transmitter has a unique code
- 2-way communication with LED indication
- Range up to 150 metres with a clear line of sight and no interference
- Very compact receiver with IP68 protection rating
- Customisation options, e.g. cable lengths, connector types and logo

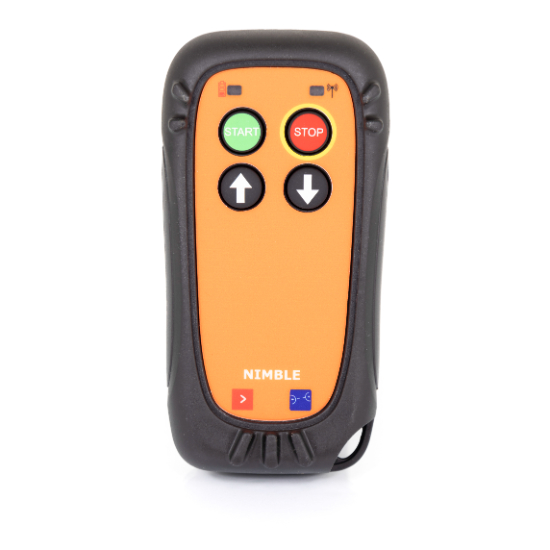

TECHNICAL SPECIFICATIONS – NIMBLE RADIO TRANSMITTER
- Power supply: 2 x AAA 1,5 V batteries
- Frequency: ISM 868 / 915 / 433 MHz
- Weight including batteries: 120 g
- Standby current consumption: approx. 5 µA
- Protection rating: IP67
- Dimensions (L x W x H): 109 x 56 x 30 mm
- Operating temperature: -20 °C to +55 °C
TECHNICAL SPECIFICATIONS – CNTR4 RECEIVER
- Supply voltage: 10–30 V DC
- Frequency: ISM 868 / 915 / 433 MHz
- Maximum current per output: 5 A
- Maximum total current: 7 A
- Protection rating: IP68
- Dimensions (L x W x H): 58 x 80 x 22 mm (excluding antenna)
- Operating temperature: -20 °C to +55 °C - Product groups
-
