Q45 winch valve 12V

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDQ450101031

  ManufacturerES Hydagent

  Characteristics

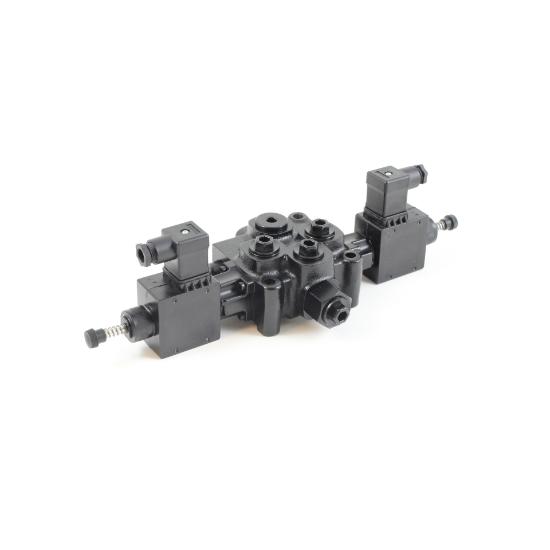

  Compact and robust electrically operated winch valve from Galtech's Q45 series, designed for 12 V systems. The valve is equipped with two electromagnetic actuators for electrical control of the winch function.

  The valve also has two manual emergency overrides, allowing the function to be operated manually if necessary, for example in the event of an electrical control fault.

  FEATURES AND BENEFITS
  - Electrically operated winch valve for 12 V systems
  - Compact valve body in the Galtech Q45 series
  - Two electromagnetic actuators
  - Manual emergency override for both actuators
  - Connection thread G1/2"
  - Two rectangular electrical connectors

  TECHNICAL SPECIFICATIONS
  - Manufacturer: Galtech
  - Series: Q45
  - Part number: 045010103170016
  - Supply voltage: 12 V DC
  - Valve body: Q45/1
  - Connection: G1/2"
  - Spool type: 103LC-203LC
  - Number of solenoid coils: 2
  - Coil type: ZDB212
  - Coil power: 58 W
  - Emergency override: 2, ZD004
  - Electrical connectors: 2 x 2P+T PG11
  - Operation: Electrical with manual emergency override

  Valve configuration: Q45/1-F7S(N175)-103LC/D9EM-F6D12VDC-
