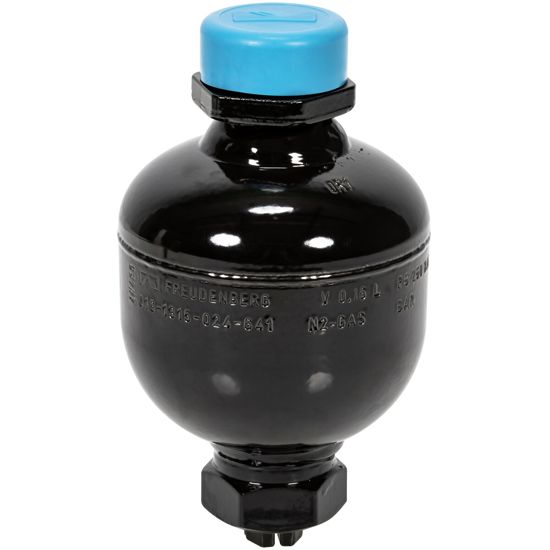

Bladder accumulator 0,16L Pre-Charge 25bar G1/2"

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHPAK016025

  Manufacturer

  CharacteristicsMax. pressure: 250 bar

  - Universal small diaphragm accumulator, that is used in many different applications
  - A diaphragm accumulator is best suited for systems that require sensitivity and fast response to pressure changes
  - Diaphragm accumulator is also cost-effective and tolerates contaminants well
  - Thanks to the ECO film material it is also well suited for Nordic conditions
  - Max. working pressure 250 bar
  - ECO film
  - Volume 0,16 l
  - Operating temperature -40...+80 °C
  - Gas valve M28x1,5
  - Charging pressure 25 bar (can be adjusted to desired level if required)
  - Connection G 1/2"

  Application areas e.g.:
  - Equalise piston pump pressure, places where it finns små pressure shocks or maintain pressure in the system

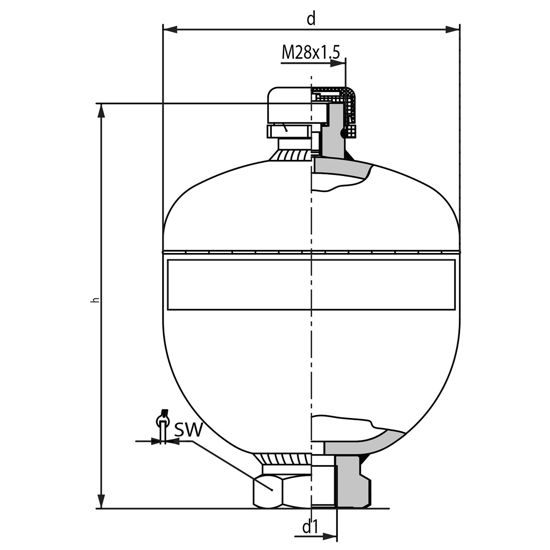

  Dimensions (mm):
  - H 126
  - D 75
  - D1 1/2"
  - SW 32
