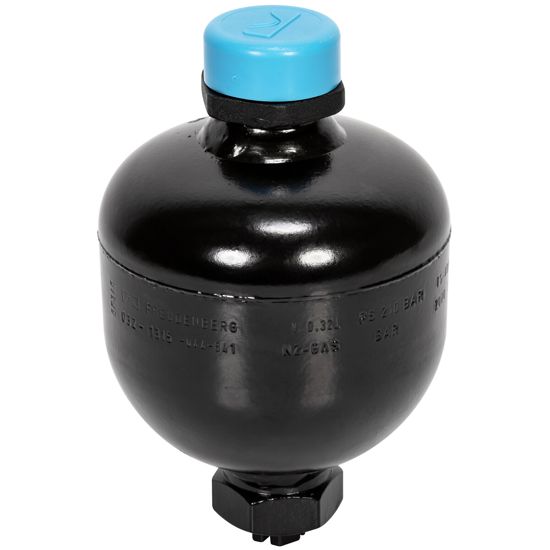

Bladder accumulator 0,32L Pre-Charge 25bar G1/2"

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHPAK032025

  Manufacturer

  CharacteristicsMax. pressure: 210 bar

  - Universal small diaphragm accumulator, suitable for many different applications where a smaller ackumulatorkapacitet is tillräcklig
  - Diaphragm accumulator is best suited for systems that require sensitivity and fast response to pressure changes
  - A diaphragm accumulator is also inexpensive and tolerates contaminants well
  - Thanks to the ECO film material it is also well suited for Nordic conditions
  - Max. working pressure 210 bar
  - ECO film
  - Volume 0,32 l
  - Operating temperature -40...+80 °C
  - Gas valve M28x1,5
  - Charging pressure 25 bar (can be adjusted to desired level if required)
  - Connection G 1/2"

  Application areas e.g.:
  - Boom damping for front loaders on smaller tractors for vilka a pre-charged 25 bar is suitable (e.g. Valtra)

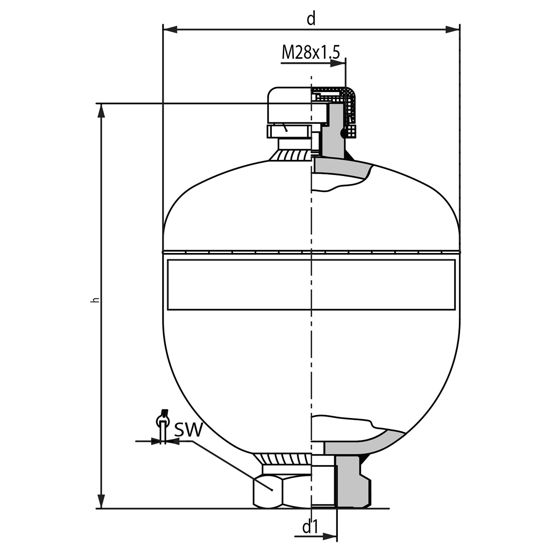

  Dimensions (mm):
  - H 141
  - D 92
  - D1 1/2"
  - SW 32
