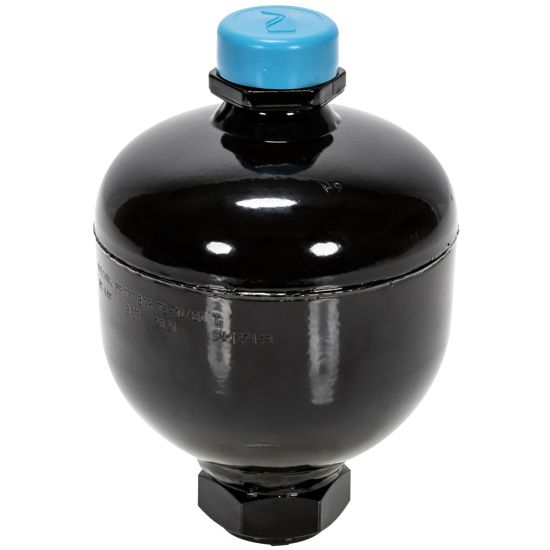

Bladder accumulator 0,5L Pre-Charge 10bar G1/2"

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHPAK05015

  Manufacturer

  CharacteristicsMax. pressure: 210 bar

  - General accumulator size, is used in many different applications
  - A diaphragm accumulator is best suited for systems that require sensitivity and fast response to pressure changes
  - Diaphragm accumulator is also cost-effective and tolerates contaminants well
  - Thanks to the ECO film material it is also well suited for Nordic conditions
  - Max. working pressure 210 bar
  - ECO film
  - Volume 0,5 l
  - Operating temperature -40...+80 °C
  - Gas valve M28x1,5
  - Charging pressure 15 bar (can be adjusted to desired level if required)
  - Connection G 1/2"

  Application areas e.g.:
  - Boom damping for tractors with loaders, for vilka de pre-chargeda 10 baren is suitable, and is replaceable with several original (Quicke, Trima, Ålo)

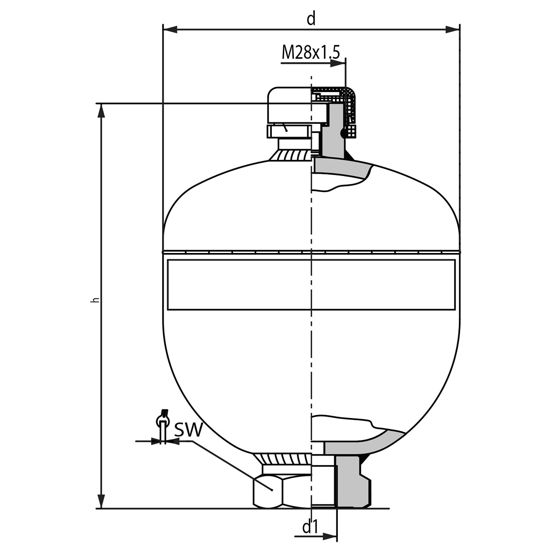

  Dimensions (mm):
  - H 159
  - D 107
  - D1 1/2"
  - SW 41
