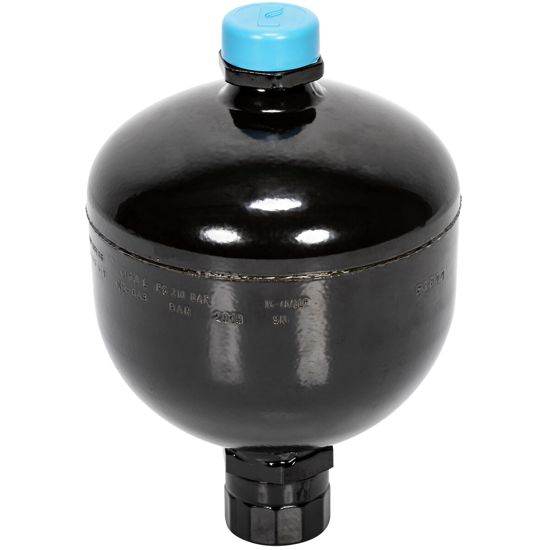

Bladder accumulator 1,0L Pre-Charge 25bar G1/2"+M33

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHPAK01025

  Manufacturer

  CharacteristicsMax. pressure: 210 bar

  - A diaphragm accumulator is best suited for systems that require sensitivity and fast response to pressure changes
  - Diaphragm accumulator is also cost-effective and tolerates contaminants well
  - Thanks to the ECO film material it is also well suited for Nordic conditions
  - Max. working pressure 210 bar
  - ECO film
  - Volume 1,0 l
  - Operating temperature -40...+80 °C
  - Gas valve M28x1,5
  - Charging pressure 25 bar (can be adjusted to desired level if required)
  - Connection G1/2" + M33x1,5

  Application areas e.g.:
  - For boom damping of larger loaders
  - Suitable for front axle damping on several tractor brands and models, for example by changing the pre-charge pressure

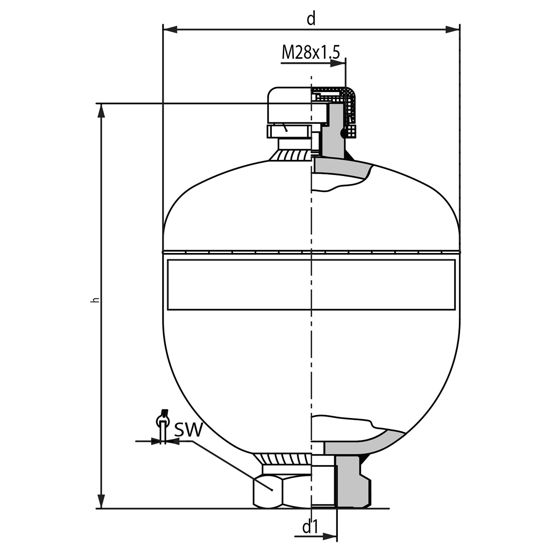

  Dimensions (mm):
  - H 198
  - D 136
  - D1 1/2" + M33
  - SW 41
