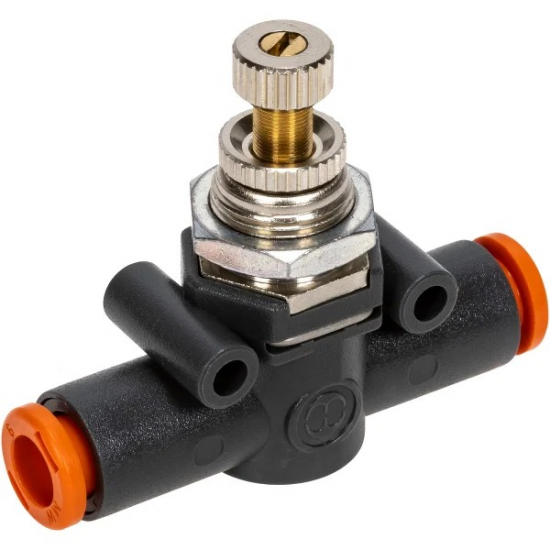

Bidirectional flow control valve RFL L B 8mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMW9041624

  Manufacturer

  Characteristics

  - Line series in-line flow control valve
  - a flow control valve restricts air flow in both directions
  - this allows the air flow to be adjusted to a suitable flow rate
  - there is a nut under the adjustment screw for securely fixing the valve
  - the valve can also be secured using mounting brackets on the body
  - the tubes can easily be connected to push-in fittings
  - material polyamide
  - adjustment range 0-850 l/min
  - max. pressure 10 bar
  - operating temperature -20... +60 °C
  - tube size Ø 8 mm
  - withium: lubricated or unlubricated filtered compressed air

  Dimensions (mm):
  - A 57,3
  - B 49
  - C 18,7
