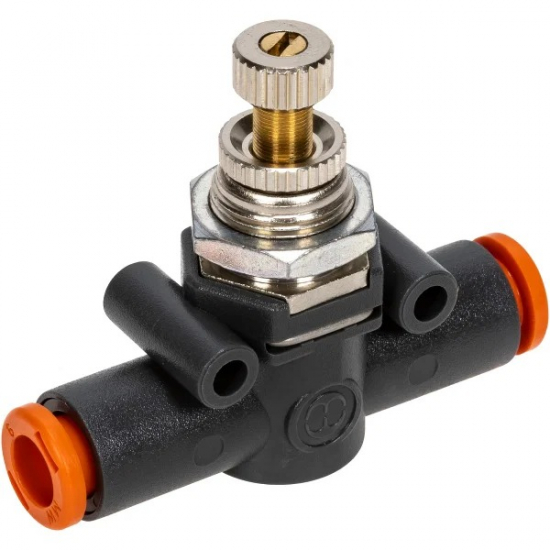

One-way flow control valve RFL L U 6mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMW9041316

  Manufacturer

  Characteristics

  - Line series in-line one-way flow control valve
  - a one-way flow control valve restricts air flow in one direction while allowing free flow in the other direction
  - allows, for example, cylinder movement to be adjusted as required
  - there is a nut under the adjustment screw for securely fixing the valve
  - the valve can also be secured using mounting brackets on the body
  - the tubes can easily be connected to push-in fittings
  - material polyamide
  - adjustment range 0-450 l/min
  - max. pressure 10 bar
  - operating temperature -20... +60 °C
  - tube size Ø 6 mm
  - withium: lubricated or unlubricated filtered compressed air

  Dimensions (mm):
  - A 49
  - B 41
  - C 14,7
