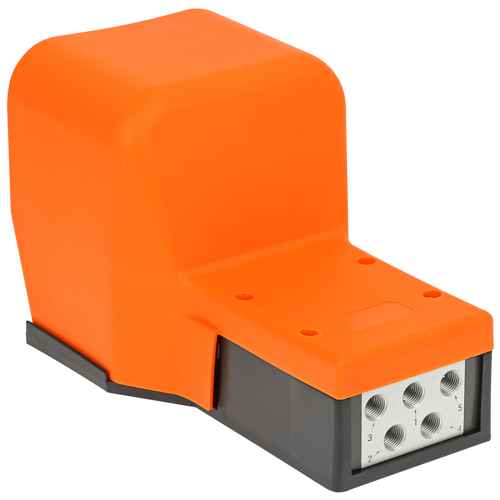

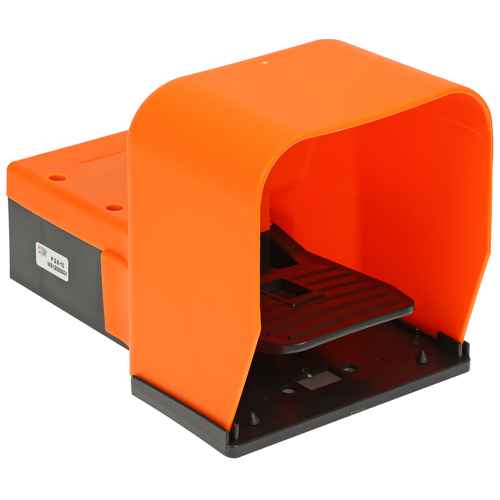

Pedal Valve 5/2 1/4 Pev35Pespr Monostable

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP3120000001

  ManufacturerMETAL WORK

  Characteristics

  - PEV series
  - type monostable
  - working pressure 2.5 - 10 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 640 Nl/min
  - max. flow at 6.3 bar (pressure drop 1 bar) 840 Nl/min
  - operating temperature -10...+60 °C
  - media: lubricated or unlubricated filtered compressed air (if lubricated air is used, lubrication must not be interrupted)
  - weight 1027 g

  PEV35PESPR
  - family PEV: foot pedal valve
  - size 3: 1/4"

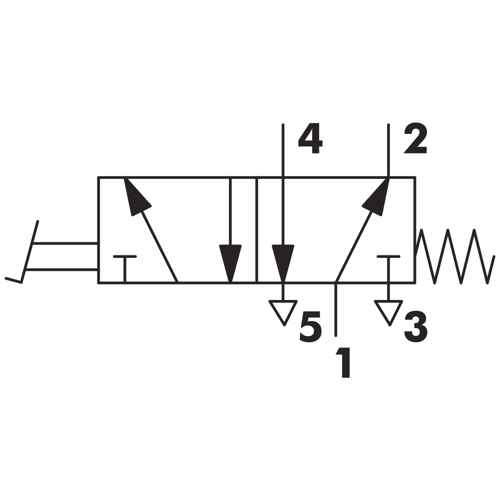

  - function 5: 5/2
  - activation 14 PE: foot activated
  - return 12 S: mechanical spring
  - other specifications PR: protective cover
