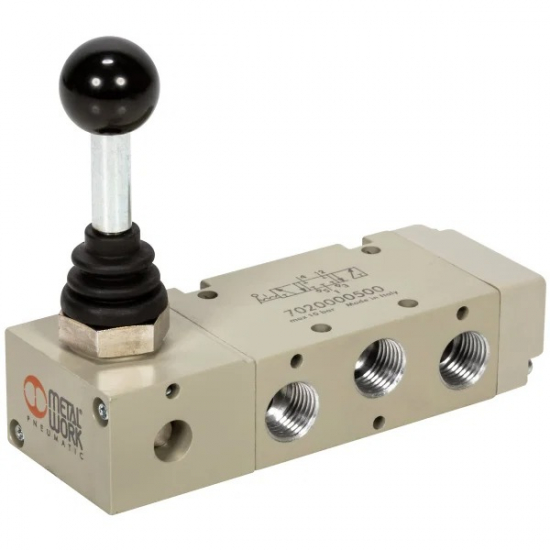

Pneumatic valve 5/3 1/4 90 MAV36LEOCC

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP7020000500

  Manufacturer

  Characteristics

  - 70 MAV-serie
  - material: aluminium valve body, nickel-plated aluminium spool, NBR seals
  - thread G 1/4"
  - working pressure 0,99 - 10 bar (directly actuated version) / 2,5 - 10 bar (pilot-operated version)
  - max. flow at 6 bar (pressure drop 0,5 bar) 750 Nl/min
  - max. flow at 6 bar (pressure drop 1,0 bar) 1100 Nl/min
  - operating temperature -10...+60 °C
  - withium: lubricated or unlubricated filtered compressed air

  MAV36LEOCC:
  - MAV family: manual control
  - size 3: 1/4"
  - function 6: 5/3
  - actuation 14 LE: 90° lever
  - return 12 O: detented 5/3
  - other specifications CC: closed centre

  The lever remains in the selected position. Used, for example, to control a double-acting cylinder: the lever can be used to adjust the cylinder height, and when the lever is returnned to the centre position the cylinder remains locked in that position.
