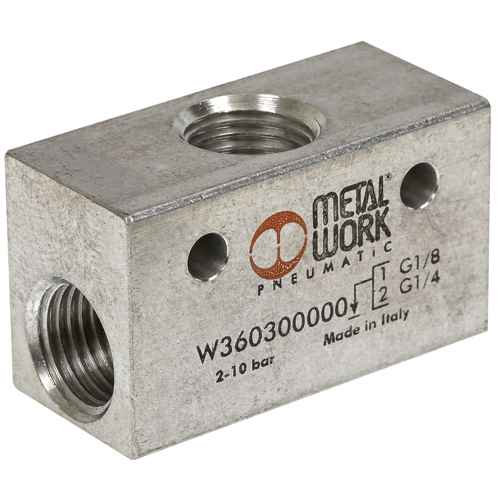

Shuttle Valve 1/4

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP3603000002

  ManufacturerMETAL WORK

  Characteristics

  - VOR series

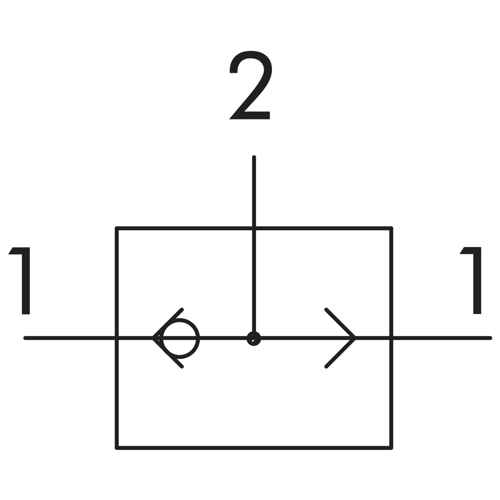

  - spool valve combines two separate signals into a common control signal
  - material valve body aluminum, mechanical parts brass, seals NBR
  - thread G 1/4"
  - operating pressure 2 - 10 bar
  - max. flow at 6 bar (pressure drop 1.0 bar) 1300 Nl/min
  - operating temperature -10...+80 °C
  - media: lubricated or non-lubricated filtered compressed air

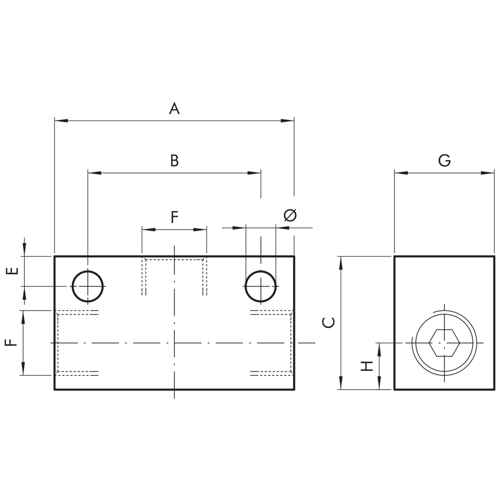

  Dimensions (mm):
  - A 43
  - C 25
  - G 20
  - H 8.5
  - E 6.5
  - B 25
  - F 1/4"
  - Ø 4.5
