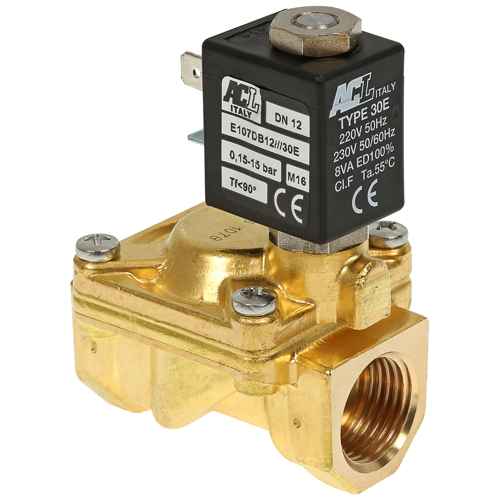

Solenoid Valve 2/2 1/2 Nc 230V

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDACL2208NC230

  ManufacturerMETAL WORK

  Characteristics

  - voltage 230 VAC
  - power 8 VA

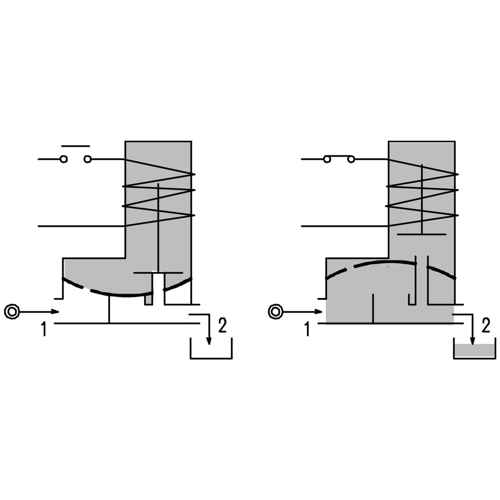

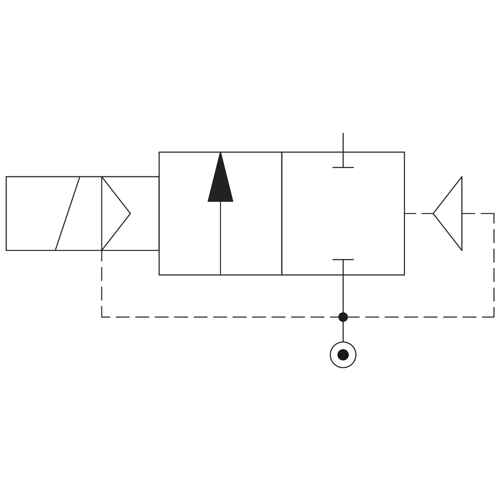

  - function 2/2 NC (normally closed)
  - material valve body brass, other parts stainless steel, seals NBR
  - operating temperature -10...90 °C
  - media: lubricated or non-lubricated filtered compressed air
  - thread G 1/2"
  - working pressure 25 bar
  - flow 902 l/min

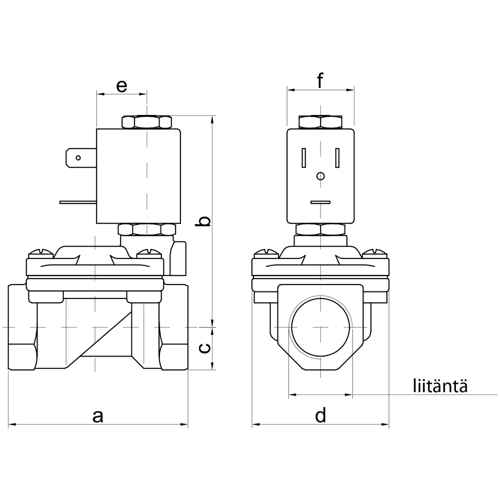

  Dimensions (mm):
  - A 59
  - B 70
  - C 14
  - D 45
  - E 16
  - F 22
