Solenoid Valve 2/2 1/4 Nc 24V

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDACL2204NC024

  ManufacturerMETAL WORK

  Characteristics

  - voltage 24 VDC
  - power 6.5 W

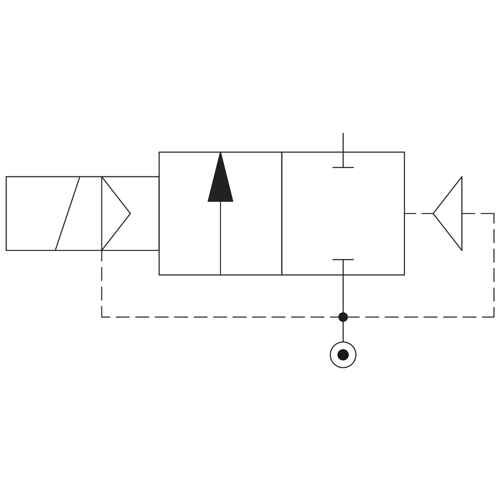

  - function 2/2 NC (normally closed)
  - materials valve body brass, other parts stainless steel, seals NBR
  - operating temperature -10...90 °C
  - media: lubricated or non-lubricated filtered compressed air
  - thread G 1/4"
  - working pressure 25 bar
  - flow rate 541 l/min

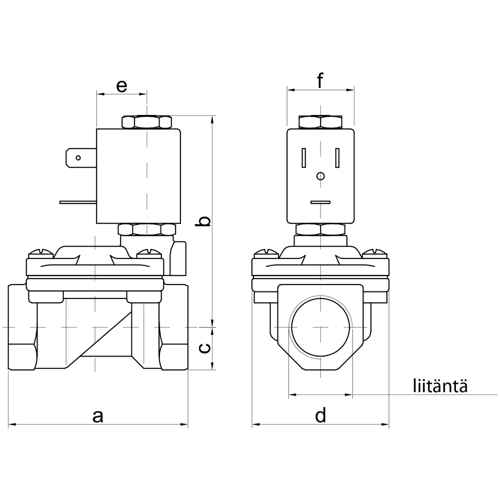

  Dimensions (mm):
  - A 49
  - B 65
  - C 11
  - D 32
  - E 16
  - F 22
