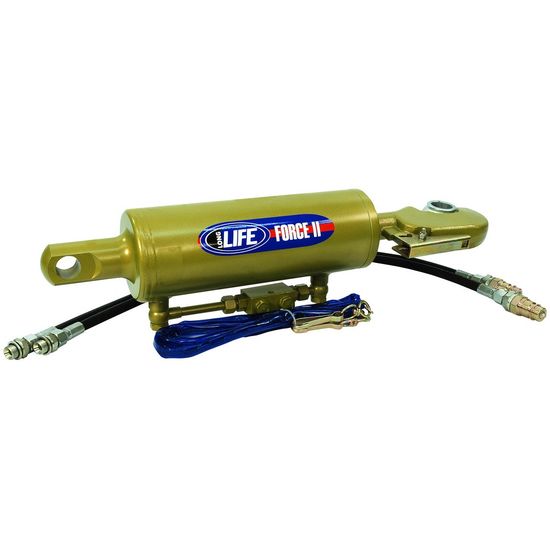

Hydraulic Top Link 100x50x542-741 Catch Hook Cat3

€961
Incl. VAT
Trackable international shipping 5-10 business days delivery Secure payments

Add to cart
Lägg i kundvagnen

bet alt
  • Info
  • Stock status
    Product IDT1630
    ManufacturerAGRILIFE

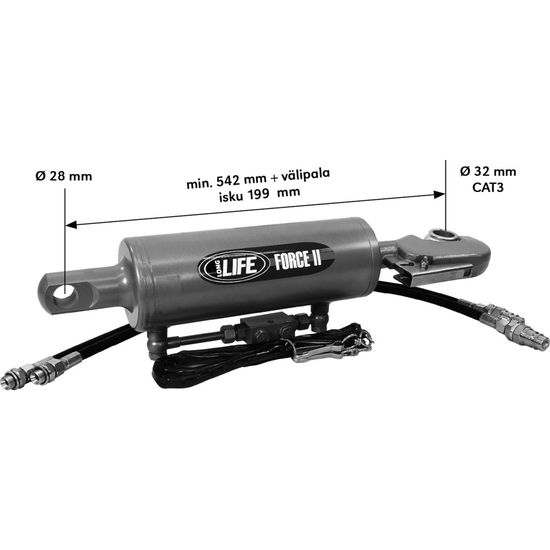

    CharacteristicsInstallation measurements min 542 mm - max 741 mm
    Stroke length 199 mm
    Hydraulic top link from Long Life. The pressure rod is in standard design for cat 3 (32 mm).

    Technical specifications:
    - piston 100 mm
    - rod 50 mm
    - installation dimensions min 542 mm - max 741 mm
    - stroke length 199 mm
    - pressure force 12500 kg, tensile force 8700 kg (from the cylinder end)
    - joint head not included
