Hydraulic Top Link 63x35x526-749 Std Cat2

€512
Incl. VAT
Trackable international shipping 5-10 business days delivery Secure payments

Add to cart
Lägg i kundvagnen

bet alt
  • Info
  • Stock status
    Product IDT1620
    ManufacturerAGRILIFE

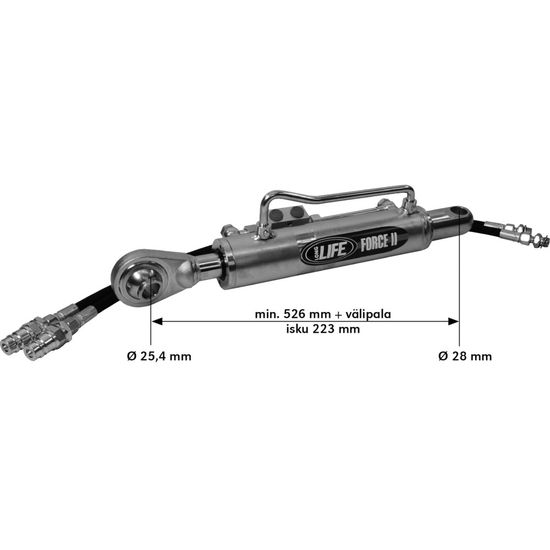

    CharacteristicsInstallation measurements min 526 mm - max 749 mm
    Stroke length 223 mm

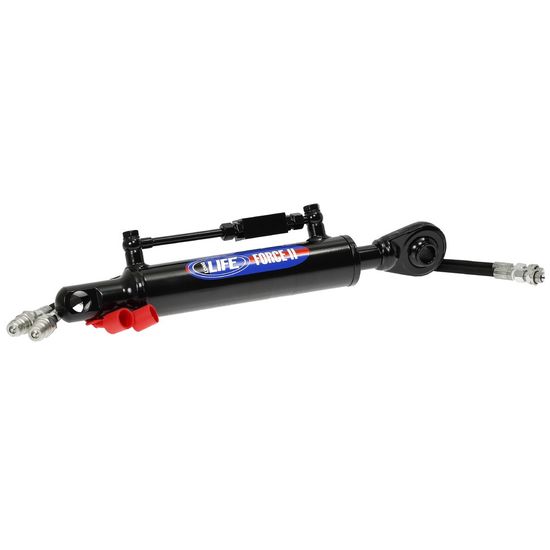

    Hydraulic top link from the brand Long Life. The pressure link is in standard design for cat 2 (25.4 mm).

    Technical specification:
    - piston 63 mm
    - rod 35 mm
    - installation dimensions min 526 mm - max 749 mm
    - stroke length 223 mm
    - pressure force 5400 kg, pulling force 3700 kg (from the end of the cylinder)
    - joint head not included
