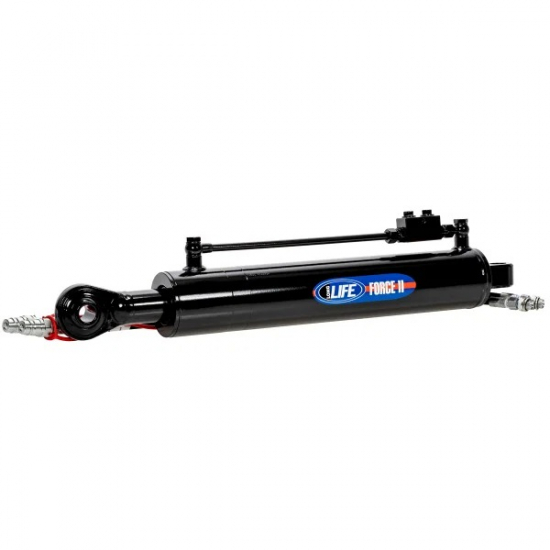

Hydraulic Top Link 90/50/455 Clevis-Cat2 Ball

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDT1632

  ManufacturerAGRILIFE

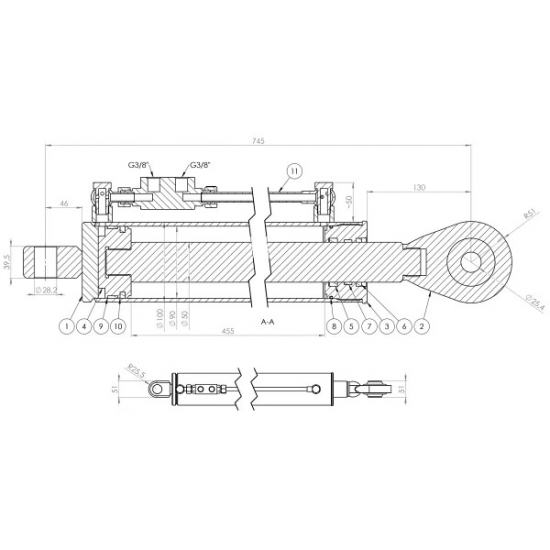

  CharacteristicsInstallation length min 745 mm - max 1200 mm
  Stroke length 455 mm

  - hydraulic top link specially designed for use with sand spreaders
  - the top link has a long stroke length, allowing a steeper angle on the spreader, which in turn makes loading easier
  - robust 50 mm rod
  - piston Ø 90 mm
  - installation length 745 mm + rod end
  - stroke 455 mm
  - max. working pressure 210 bar
  - pushing force 13600 kg (210 bar)
  - pulling force 9400 kg (210 bar)
  - includes check valve and 850 mm long 1/4" hoses with quick couplings
  - rod end not included
