  Product IDTAR001A

  ManufacturerTARMO

  CharacteristicsExcavator arm has an excavation force of 895 kg and bucket excavation force is 1175 kg

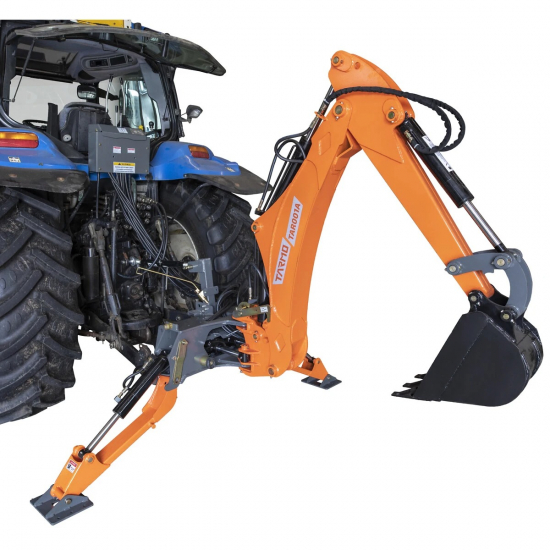

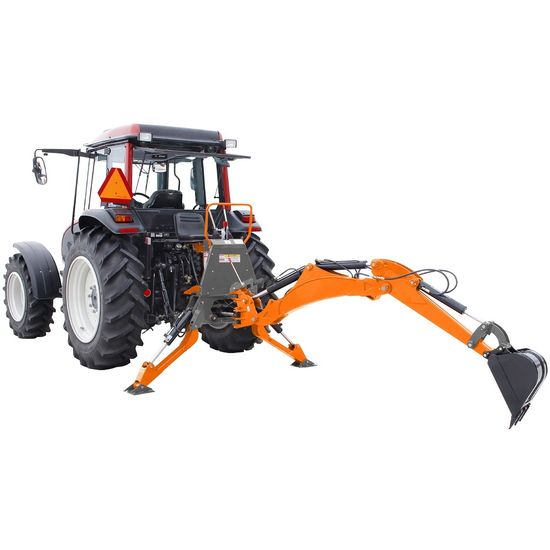

  An excavator from Tarmo with 3-point attachment powered by hydraulic force from your tractor.
  Can also be powered by using item TAR001-26 which is a hydraulic power unit with
  tank, gearbox, and pump.
  The digging arm has a digging force of 895 kg and the bucket digging force is 1175 kg.

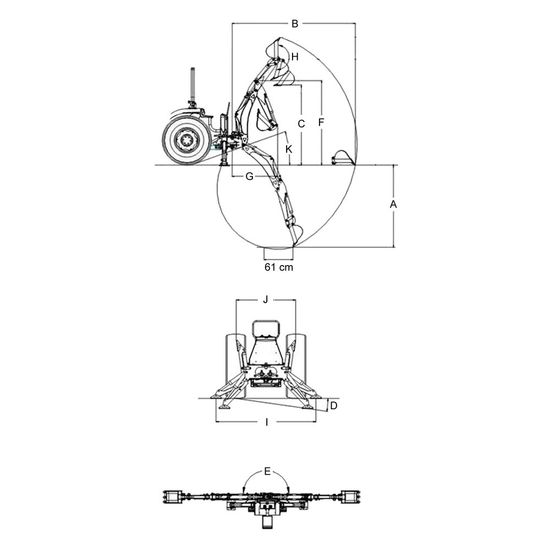

  Technical specification:
  - CAT2
  - digging depth (A) 2200 mm
  - boom swing angle (E) 180°
  - lifting height (bucket 60°) (C) 1,0850 mm
  - maximum balancing angle (D) 10°
  - reach (B) 3200 mm
  - bucket swing angle (H) 180°
  - width of stabilizers in digging position (I) 1750 mm
  - width of stabilizers in transport position (J) 1180 mm
  - height in transport position (F) 2120 mm
  - overhang in transport position (G) 1230 mm
  - starting angle (K) 21°
  - bucket 12" 300 mm
  - working pressure: 160 bar
  - hydraulic system flow min. 20 l/min
  - total weight (with bucket) 450 kg

  When using CAT 1 link arms, the following are required:
  - link arm pin 127 x 22 V9555/1
  - sleeve 22.2 x 28.5 x 45 mm (cut if necessary) T0775
  - pressure rod 1-2 525-720 T0065
