Mini Excavator for ATV

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDTAR011P

  ManufacturerTARMO

  Characteristics

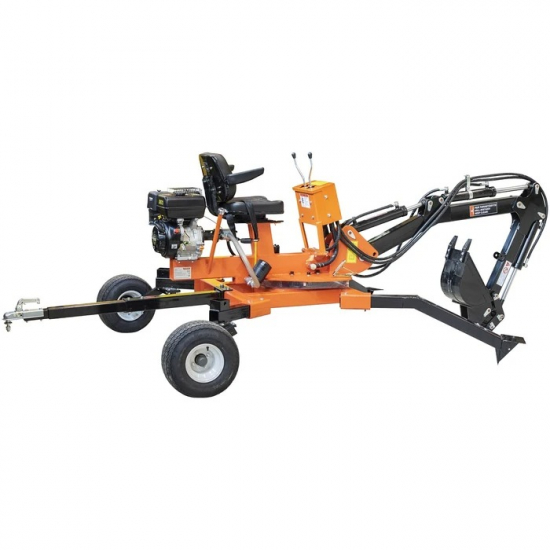

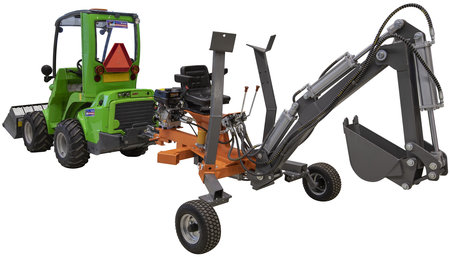

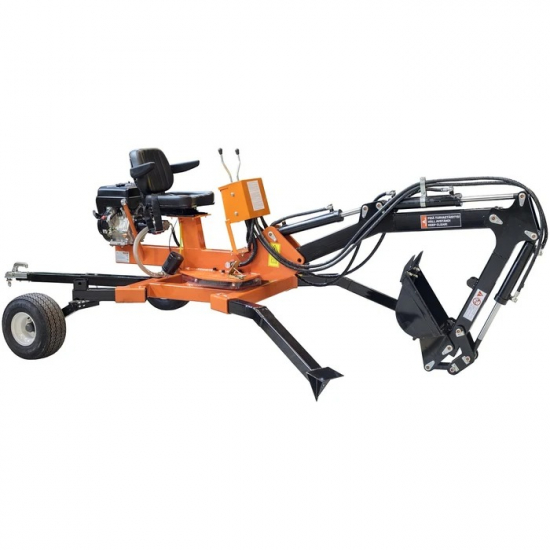

  A compact mini excavator from Tarmo. The excavator can be moved/towed through the towing hitch
  attached to the machine.

  Technical specifications:
  - bucket size 25 cm
  - engine power 15 hp
  - engine speed 3600 rpm
  - operating pressure in the cylinder 16 MPa
  - cylinder diameter and stroke Ø 63 mm x 300 mm
  - number of cylinders 3 pcs- bucket swing angle 120°
  - max. working load 200 kg
  - max. digging depth 200 cm
  - max. digging diameter 326 cm
  - max. loading height 170 cm
  - tire size 18"
  - ball coupling 50 mm tow ball
  - sound pressure level LpA 95 dB(A)
  - recommended hydraulic oil ISO VG32
  - hydraulic oil volume 14 l
  - recommended engine oil SAE 10W-30
  - fuel alkylate petrol for 4-stroke engines prevents impurities in the carburetor (or 98E5/95E10 with max. 10% ethanol)
  - fuel volume 6.5 l- tire pressure 1.5 bar (22 psi)
