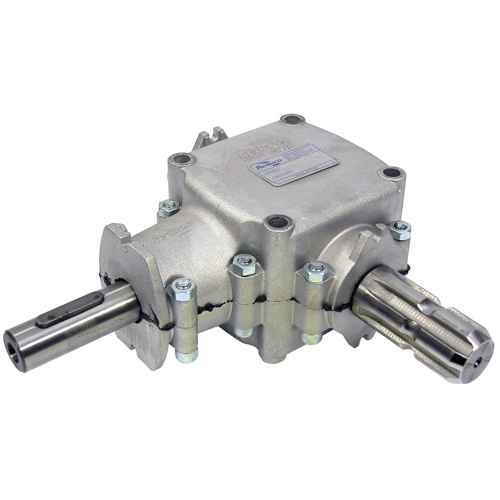

Angle Gear R035 1:1,92

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDR0350420

  ManufacturerREDUCO

  Characteristics- Power range 9-14 kW / 13-20 HP
  - Gear ratio 1:1.92

  - power class 9-14 kW / 13-20 HP
  - weight 4.5 kg
  - gear ratio 1:1.92

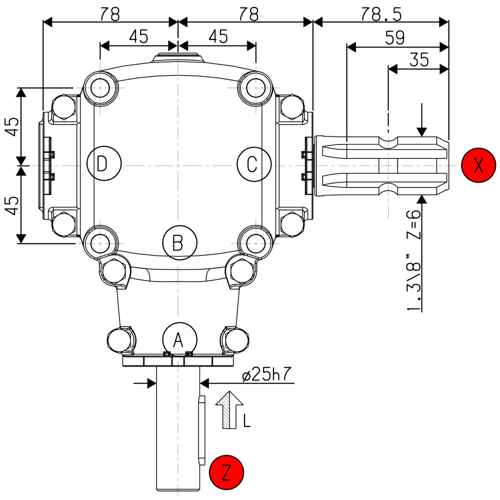

  - X = 1 3/8" Z6
  - Z = Ø 25h7
  - driving shaft X
  - power transmission max. 540 rpm / 9 kW / 13 HP / 17 daNm 1000 rpm / 14 kW / 20 HP / 14 daNm

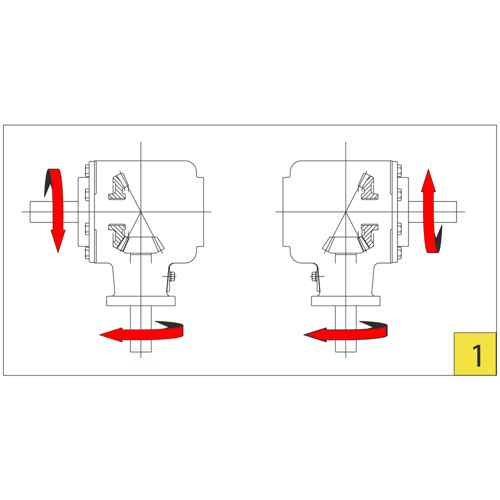

  - rotation direction 1
  - 2 driving shafts
  - suitable grease NLGI.00EP

  Note! Aluminum angle gears are delivered with oil from the factory
