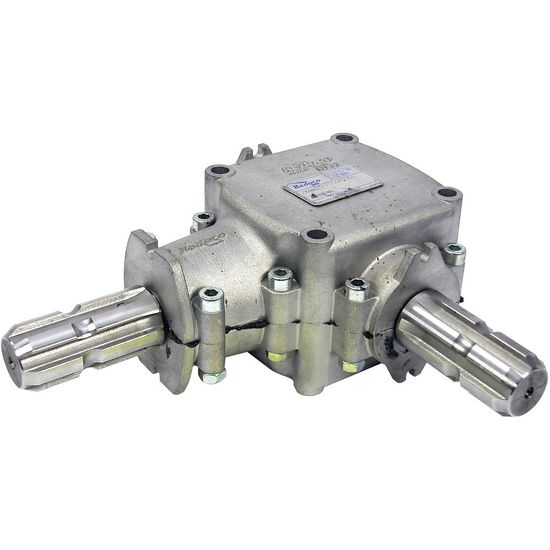

Angle Gear R035 1.35:1

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDR0350260

  ManufacturerREDUCO

  Characteristics- Power range 10-15 kW / 13-20 HP
  - Gear ratio 1.35:1

  - power class 10-15 kW / 13-20 HP
  - weight 4.5 kg
  - gear ratio 1.35:1
  - X = 1 3/8" Z6
  - Z = 1 3/8" Z6
  - driving shaft Z
  - power transmission max. 540 rpm / 10 kW / 13 HP / 18 daNm 1000rpm / 15 kW / 20 HP / 15 daNm

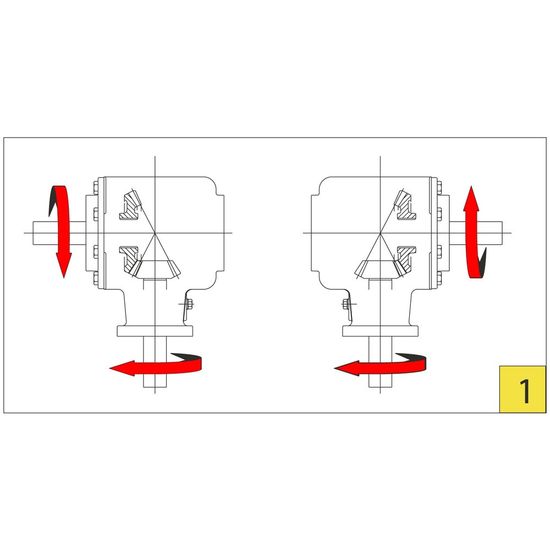

  - rotation direction 1
  - 2 driving shafts
  - suitable grease NLGI.00EP

  Note! Aluminum angle gears are delivered with oil from the factory
