Extra Light Harness 12-24V Canbus

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDST86116

  Manufacturer

  Characteristics

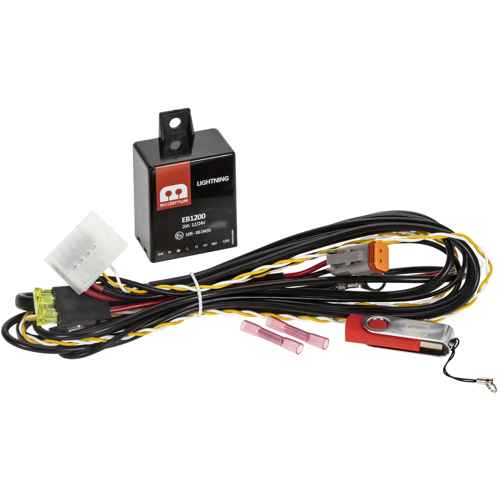

  - Digital Lightning 1200 extra light wiring harness is suitable for direct connection to the vehicle's CAN bus and the extra lights are turned on/off with the vehicle's own high beams
  - the harness control current can be taken from either the CAN-H and CAN-L wires or a +12 - 24 V source
  - voltage 12 - 24 V DC
  - max. 13 A (20 A without DT connector)
  - 20 A fuse
  - electronic relay (solid state)
  - power consumption 3.6 mA
  - control current CAN-H and CAN-L
  - dimensions 60 x 50 x 32 mm

  Includes:
  - 1 pc wiring harness DL1200
  - USB memory for storing and transferring programs
  - instructions in English (FI / EN / SE installation instructions and compatibility list for cars can be downloaded)

  The relay can be programmed to function in your vehicle by downloading the program from the vehicle manufacturer's website to the included USB memory.
