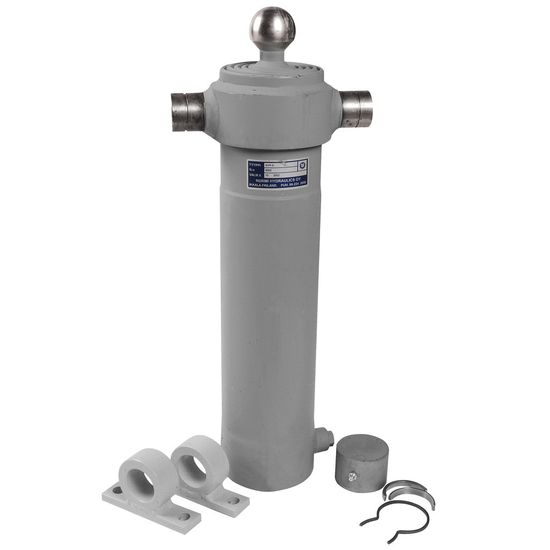

Tip Cylinder 4TN 1155/95 Upper Bracket

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID5002NYL4

  Manufacturer

  Characteristics

  - high-quality Finnish product from the largest manufacturer in the Nordic countries
  - Cylinder tube: high-quality cold-rolled polished tube (note that the tube is not coated, so it is not recommended to be used for example in trucks, and it is not recommended to leave the tipper upright for a long time)
  - Gaskets: high-quality PUR gaskets and wipers, wide guide rings support the structure and prevent sticking
  - All cylinders have the same installation length, so the cylinders are interchangeable
  - Brackets included

  Technical data:
  - Connecting thread R 1/2"
  - Spin size 40 mm, length 35 mm
  - Sheath Ø 95 mm
  - movable pipes Ø 80, 65, 50 mm
  - Stroke 1155 mm
  - Oil volume 4.0 l
  - max. Flatbed length 4.0 m
  - Maximum working pressure 210 bar
  - Power pressure 160 bar 5 tons

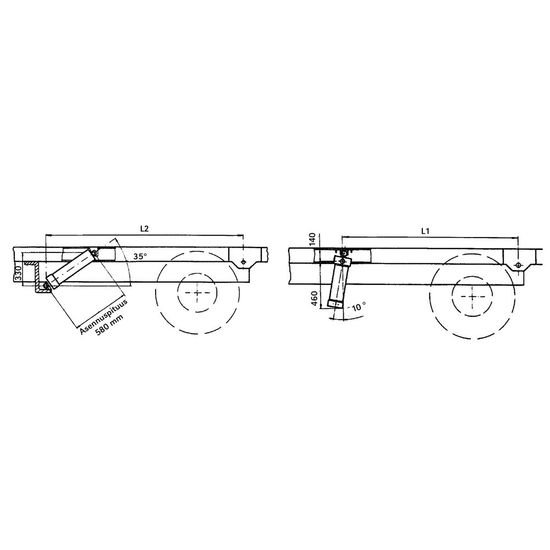

  - Dimensions L1 1200 mm

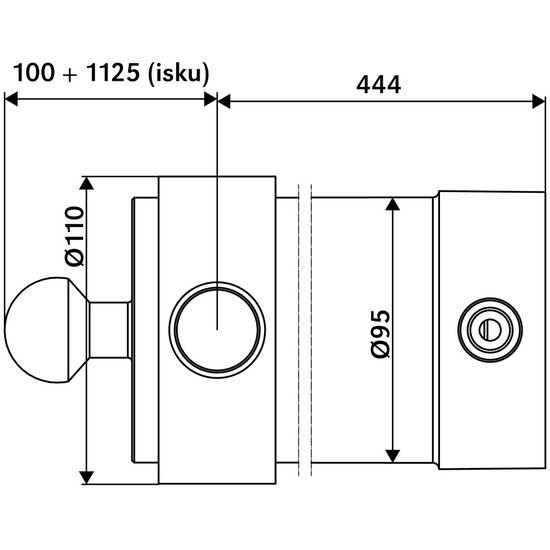

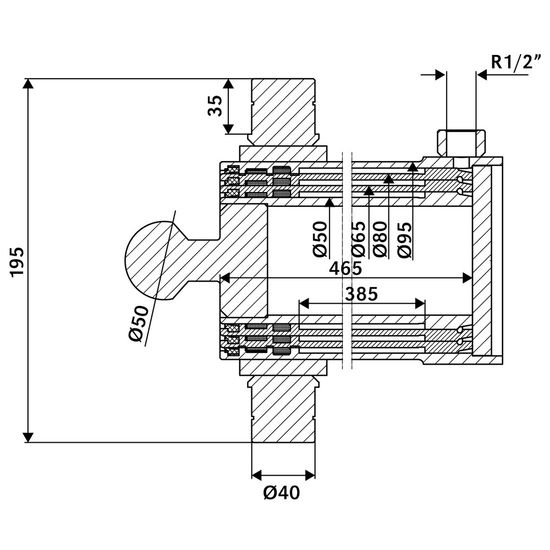

  Note: When you mount the tipper, make sure that the first pipe is out about 20 mm. This has been taken into account in the assembly and dimensional drawings.
