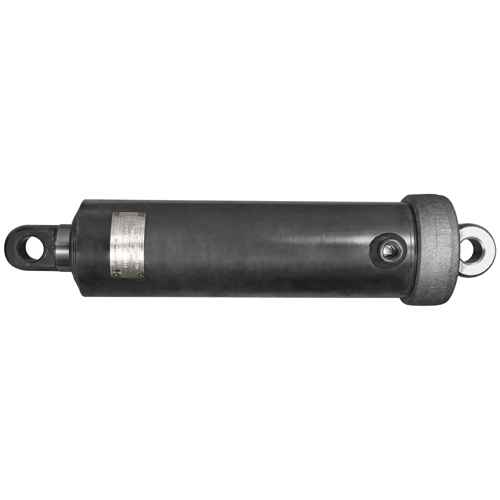

TIPPING CYLINDER 11.5TN 580-2050MM LOWER MOUNT

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKSN44

  Manufacturer

  Characteristics

  - tip cylinder with bottom bracket
  - the moving pipes operate "steel against steel", less swaying during operation
  - Tenifer® treated pipes provide excellent corrosion and abrasion resistance, low internal friction without separate guide rings or bushings
  - no separate locking rings at the lower ends of the moving pipes, the pipes ensure safe operation until the end of movement
  - roughness on pipe surfaces is 0.20 micrometers, very low sealing wear
  - operating temperature for seals -40...+110 °C
  - each cylinder is tested at 220 bar
  - max. working pressure 200 bar
  - cylinder with threaded bottom, easy to disassemble and maintain
  - stroke 1510 mm
  - capacity 11.5 tons (200 bar)

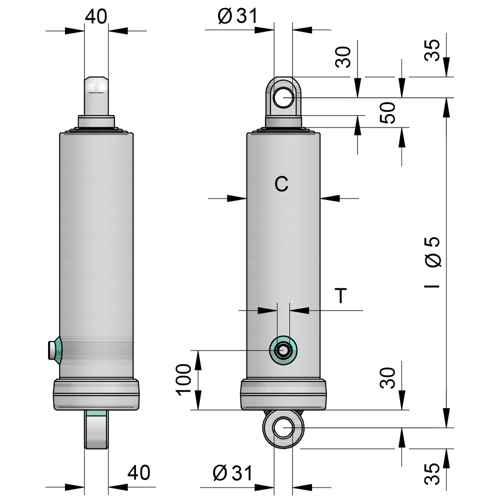

  - outer pipe Ø 124 mm
  - installation length 580 mm
  - the smallest dimensions when fully retracted 560 mm
  - pin size upper/lower 30 mm
  - hydraulic connection BSP 1/2"
  - oil volume 9 l

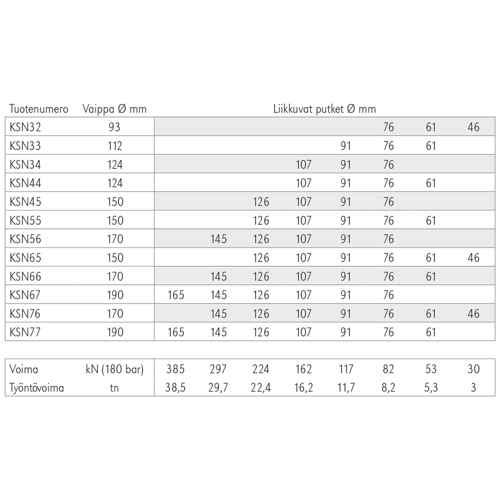

  - moving pipes 61/76/91/107 mm
  - weight 39 kg
