  Product IDKV0106

  Manufacturer

  Characteristics6 outlets
  Max. working pressure: 300 bar

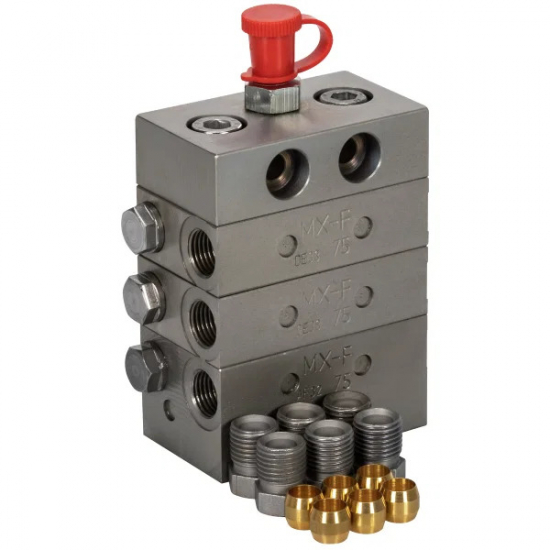

  - The progressive central lubrication divider supplies the same amount of lubricant to each channel
  - The valve mechanism inside the block ensures that if one line becomes blocked, the mechanism locks and prevents grease from being supplied to the other points
  - This allows a blocked line to be detected in time and helps prevent wear on the machine itself
  - Can be used with a manual grease gun or an automatic central lubrication pump
  - Always clean the grease nipple before using the grease gun
  - Nipple centralisation makes it easier to lubricate machines and equipment with multiple lubrication points that may be located in dirty, confined or otherwise difficult-to-reach areas
  - With a central lubrication system, the lubricant recommended by the machine manufacturer can always be used, up to NLGI 2
  - The system eliminates the need to switch to a more fluid lubricant in winter unless recommended by the manufacturer
  - 6 outlets, allowing 3-6 channels to be configured as needed
  - The package includes instructions for closing surplus outlets, e.g. for 5 outlets
  - The lubricant is distributed evenly between all outlets on the divider. For example, with 6 outlets, each outlet receives 1/6 of the total amount of lubricant entering the divider
  - If one outlet in an outlet pair is taken out of use, its grease quantity is directed to the open outlet, allowing the amount of grease at one point to be increased
  - Divider outlet thread M10x1
  - Max. working pressure 300 bar
  - Operating temperature -35...+80 °C
  - Includes 3 blind plugs and 6 outlet fittings
