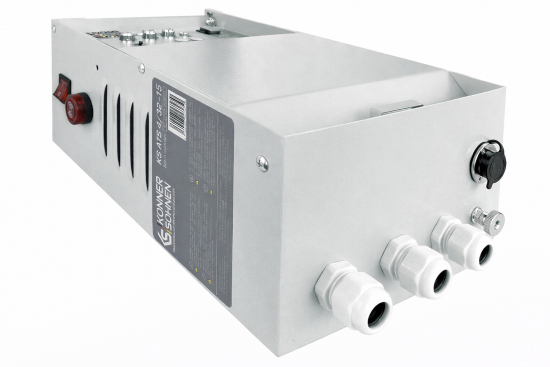

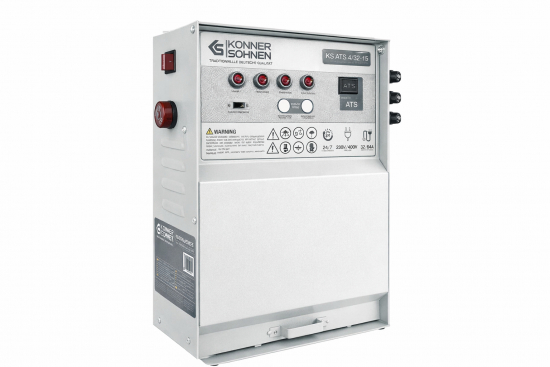

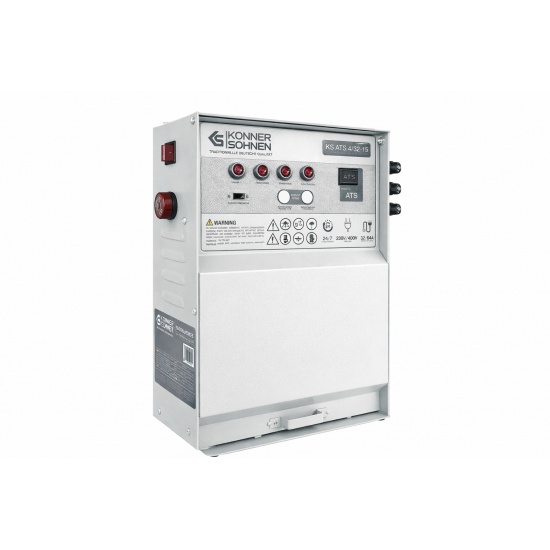

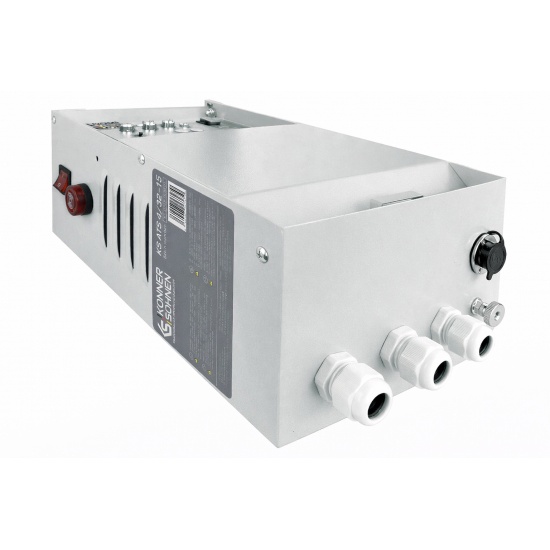

ATS Box KS ATS 4/32-15

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKSATS4_32-15

  ManufacturerKönner & Söhnen

  CharacteristicsFits: KS 15-1E 1/3 ATSR

  The automatic transfer switch (ATS) KS ATS 4/32-15 from the German brand Könner & Söhnen automatically starts the generator, connects the load when the main power supply is disconnected, and automatically stops the generator when mains power is restored.

  The KS ATS 4/32-15 model is suitable for the Könner & Söhnen diesel generator KS 15-1/3E.

  Technical specification:
  Power (230 V), kW: 14
  Current (max) 230 V, A: 64
  Power (400 V), kW: 21
  Current (max) 400 V, A: 64
  Operating Conditions: from -10 °C to +55 °C, humidity: ⩽60 %
  Storage Conditions: from -10 °C to +70 °C, humidity: ⩽60 %
  Voltage, V: 230/400
  IP Protection Class: IP41
  Net Dimensions (LxWxH), mm: 220 x 150 x 370
  Gross Dimensions (LxWxH), mm: 325 x 200 x 405
  Net Weight, kg: 5.5
  Gross Weight, kg: 6.1
