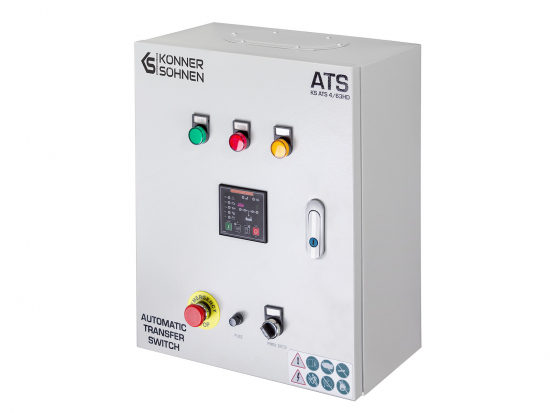

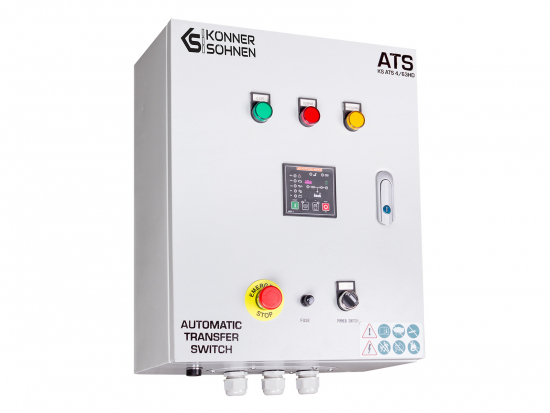

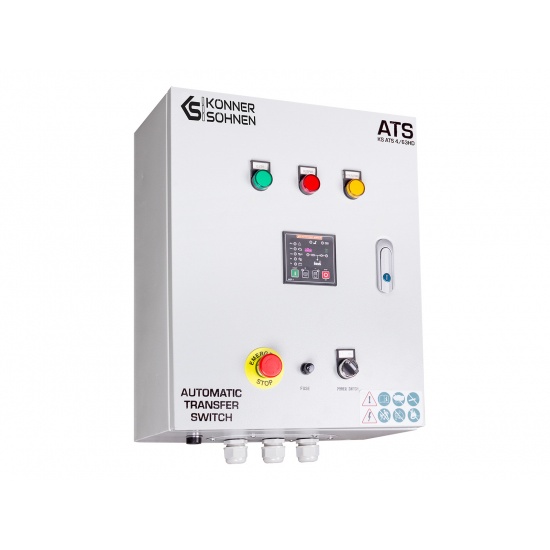

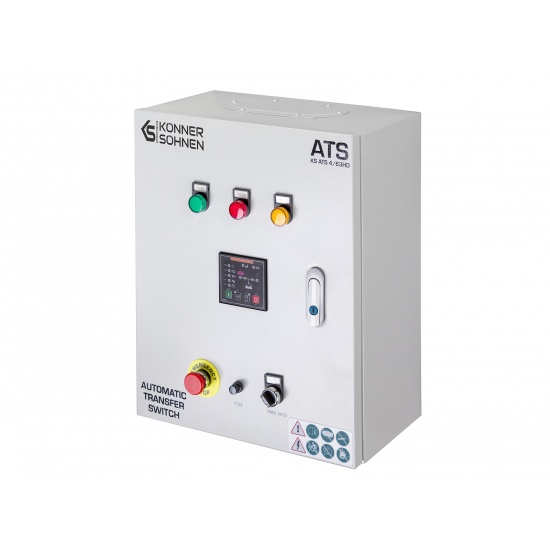

ATS Box KS ATS 4/63HD

• Info
• Stock status

  Product IDKSATS4_63HD

  ManufacturerKönner & Söhnen

  Characteristics

  The ATS unit (Automatic Transfer Switch) automatically starts the generator and transfers the load to it when the main power supply is disconnected.

  The KS ATS 4/63HD ATS unit is suitable for single-cylinder diesel generators from Könner & Söhnen with the ATSR designation in the article, which are equipped with a universal 6-pin connector for connection to the automatic transfer switch (ATS input).

  Gasoline and diesel generators with electric start are equipped with a universal 6-pin connector for an ATS unit (ATS input). The ATS unit has a PLC (programmable logic controller) that allows for programming the automatic start/stop of the generator during a power outage and after power is restored.


  Programmable logic controller for the ATS unit:

  • Automatic/manual operation
  • Programming of the engine's start time after a power outage
  • Programming of the engine's warm-up time before connection to consumers
  • Setting of startmotor operating time
  • Monitoring of the engine's performance
  • Charging of the battery when the generator is off


  Technical specifications:


  • Battery voltage: 12 V DC
  • Current (max): 63 A
  • Operating environment: from -10 °C to +55 °C; humidity: <60 %
  • Storage environment: from -10 °C to +70 °C; humidity: <60 %
  • Isolation class: AC 1.5 kV / 1 min, 1 mA
  • Maximum battery charging current from built-in power supply: 2 A
  • Length of control cable: 4.4 m
  • Voltage: 230/400 V
  • Frequency: 50 Hz
  • IP protection class: IP41
  • Net dimensions (LxWxH): 320 x 190 x 400 mm
  • Gross dimensions (LxWxH): 420 x 220 x 520 mm
