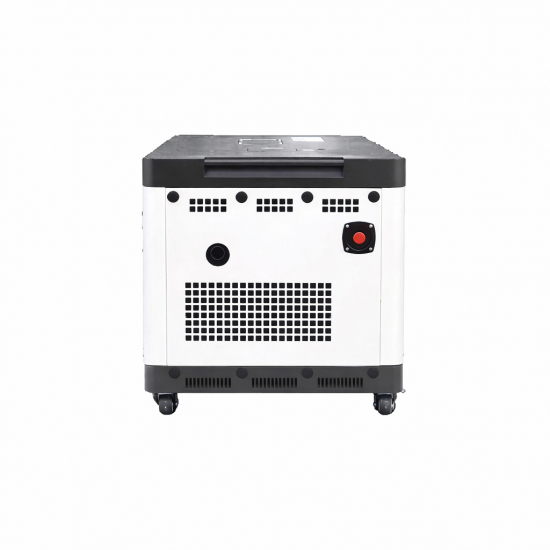

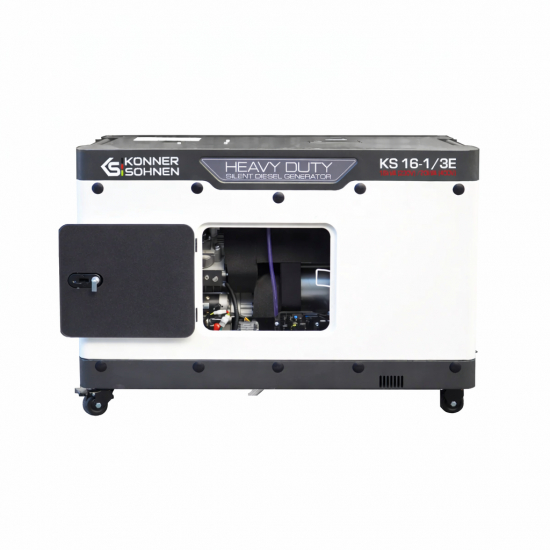

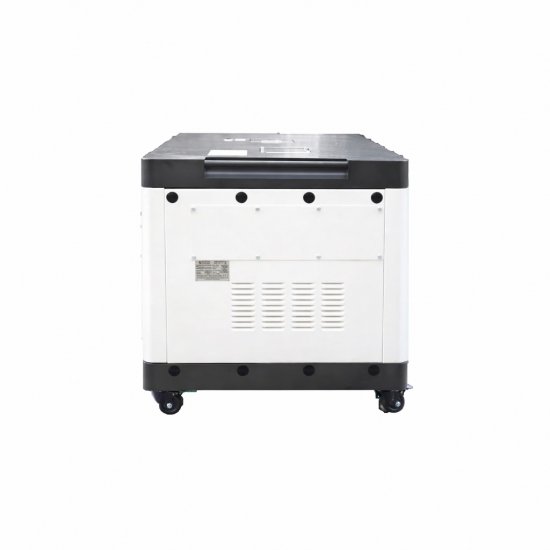

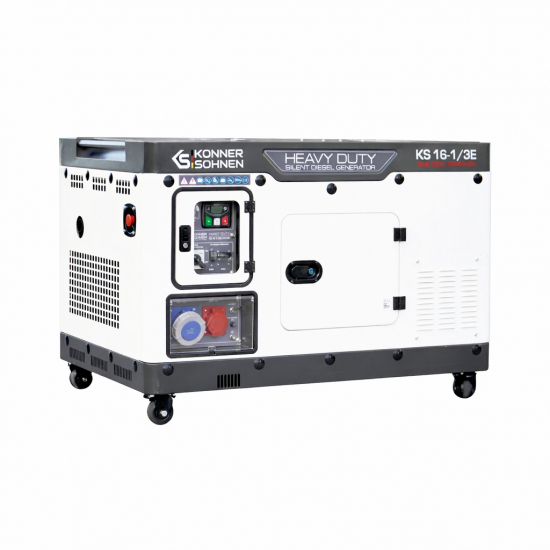

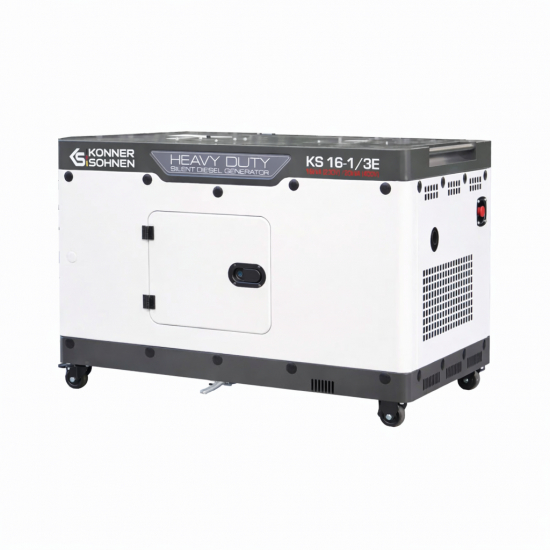

Diesel Generator KS 16-1/3E

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKS16-1_3E

  ManufacturerKönner & Söhnen

  CharacteristicsPower (kW): 16/20

  The KS 16-1/3E two-cylinder diesel generator is a reliable solution for backup power supply for residential and commercial properties. It ensures uninterrupted operation and comfort even without centralized electricity, making it an ideal choice for households, construction sites or business facilities as a backup power source.

  Thanks to the VTS phase switching system, the generator can operate both single-phase and three-phase consumers with minimal power loss. Each mode has its own circuit breakers. There is no need to purchase two separate generators.

  BRANDED ENGINE
  The diesel generator engines are manufactured under license from DIMAX Int. GmbH and feature a power reserve relative to the generator, ensuring stable voltage across the entire operating range. These engines meet all European quality standards, including the latest EURO 5 environmental standard. The V-type two-cylinder engines are perfectly balanced, resulting in quieter operation and longer service life.

  2-IN-1 GENERATOR – 230V / 400V
  The KS 16-1/3E generator is equipped with the unique innovative VTS (Voltage Transfer Switch) phase switching system, enabling one generator to be used for both single-phase (230V) and three-phase (400V) consumers with minimal power loss. There is no need to purchase two separate generators.

  ATS CONNECTION CAPABILITY
  The Automatic Transfer Switch (ATS) module automates the process of switching to backup power, eliminating the need for manual generator start and stop when mains power is restored.

  BACKUP POWER SOURCE
  The diesel generator provides a reliable backup power source, allowing operation of all essential appliances during power outages.

  SMARTGEN MULTIFUNCTIONAL CONTROL UNIT
  The SMARTGEN HGM501 multifunctional controller is an intelligent digital unit that allows selection of automatic or manual operating modes. It provides efficient control, monitors all key operating parameters and protects the generator during both autonomous and backup operation. In case of a fault, the engine shuts down immediately and the indicators signal issues such as low oil pressure, high or low voltage, frequency fluctuations, overload or overheating.

  IMPROVED BATTERY
  The 45 Ah battery provides sufficient starting current for fast and reliable starts, even at low temperatures, ensuring stable operation and long service life.

  PREHEATING BEFORE START
  The integrated preheating system automatically warms the air before starting, ensuring safe engine start and quick generator activation even in sub-zero temperatures.

  EMERGENCY STOP BUTTON
  The emergency stop button provides a quick and safe way to shut down generator operation in unforeseen situations.

  SOUND-INSULATED ENCLOSURE
  The high-quality sound-insulated enclosure features an improved design to maximize protection against external weather conditions and prevent moisture ingress. The dense insulation material significantly reduces noise levels during operation.

  EASY TRANSPORTATION
  The enclosure is equipped with six-inch and four-inch swivel wheels, making it easier to move the unit and ensuring secure positioning during operation. A wide handle on the top provides additional convenience.

  WARRANTY AND SERVICE
  HEAVY DUTY diesel generators are supplied with an extended 2-year warranty. The central warehouse is fully stocked with spare parts, and technical support is always available.

  PACKAGE INCLUDES EVERYTHING REQUIRED
  Accessory storage bag, oil filling funnel, portable power connector 230V (63A), 230V 32A connector, muffler and cylinder gaskets, fuel filter, open-end wrenches 10×12 mm and 14×17 mm, screwdriver.

  Technical specification:
  Voltage, V: 230/400
  Max/rated power (230V), kVA: 16/15
  Max/rated power (400V), kVA: 20/18.75
  Power factor, cosφ: 1 (230V)/0.8 (400V)
  Frequency, Hz: 50**
  Current (max) 230/400 V, A: 69.56/28.9
  Sockets: 1 x CEE 400 V 32 A, 1 x CEE 230 V 63 A
  Fuel consumption, l/h: 3.36 (50% load)
  LED display: Multifunctional digital controller HGM501
  Noise level Lpa (7m)/Lwa, dB: 76/96
  Engine type: Diesel, 2-cylinder, 4-stroke air-cooled
  Engine model: KS 1400HD
  Engine speed, rpm: 3000
  Engine power, hp/kW: 30/22
  Preheater: +
  Fuel tank volume, l: 30
  Engine oil volume, l: 4
  Engine displacement, cm3: 1326
  Voltage regulation: Intelligent AVR system
  Engine start: Electric
  Battery (Ah): 45
  Battery charger: Integrated
  ATS output: +
  Protection class: IP23
  Net dimensions (LxWxH), mm: 1320×820×880
  Gross dimensions (LxWxH), mm: 1330×830×930
  Net weight, kg: 363
