ATS Box KS ATS 16-4/100

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKSATS16-4_100

  ManufacturerKönner & Söhnen

  CharacteristicsFits: KS 16-1E & KS 16-1/3E

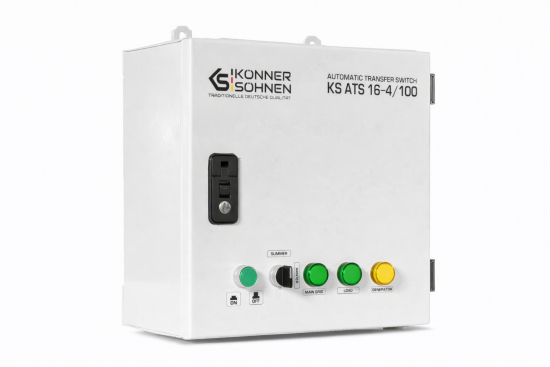

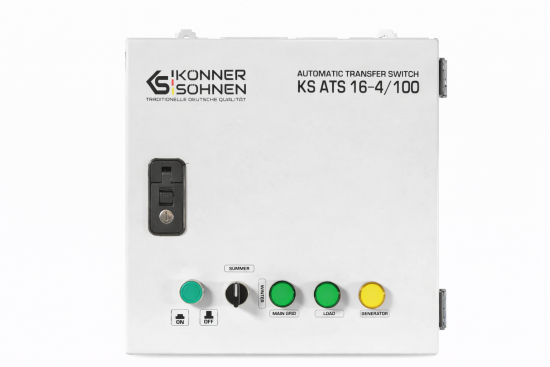

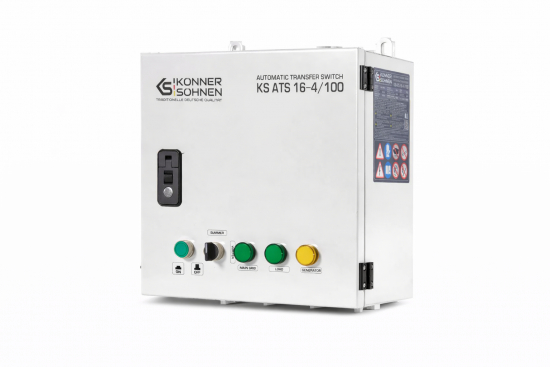

  The automatic transfer switch (ATS) KS ATS 16-4/100 from the German brand Könner & Söhnen automatically starts the generator, connects the load when the main power supply is disconnected, and automatically stops the generator when mains power is restored.

  The KS ATS 16-4/100 model is suitable for the Könner & Söhnen diesel generators KS 16-1/3E and KS 16-1E.

  Technical specification:
  Peak power requirement, W: 15
  Power (230V), kW: 23
  Current (max) 230 V, A: 100
  Power 400V, kW: 55
  Current (max) 400 V, A: 100
  Operating environment: from -50 to +45 °C, humidity: <50%
  Storage environment: from -30°C to +70°C, humidity: <50%
  Insulation class: AC1.0KV/1min 1mA
  Control cable length, m: 10
  Voltage, V: 230/400
  IP protection class: IP44
  Net dimensions (LxWxH), mm: 350x382x192
  Net weight, kg: 12
