Diesel Generator KS 16-1E
€8225
Incl. VAT
- Info
-

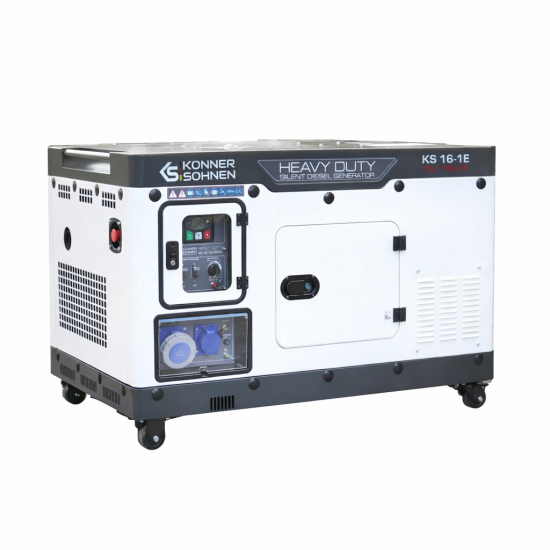

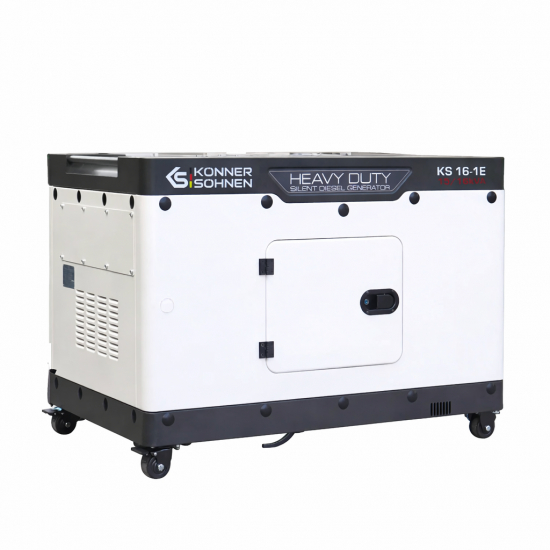

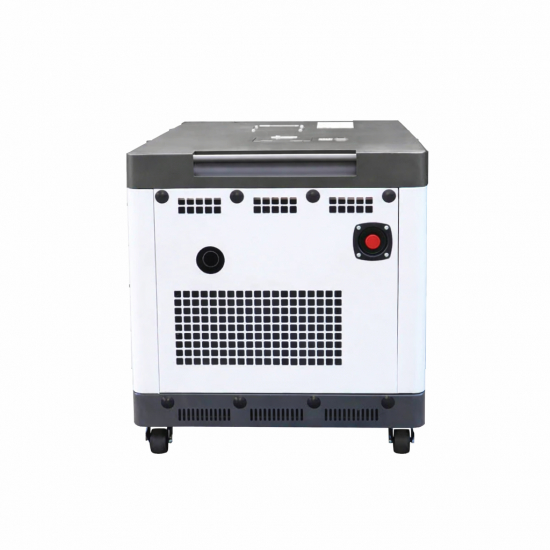

Stock statusProduct IDKS16-1EManufacturerKönner & SöhnenCharacteristicsPower (kW): 16The KS 16-1E two-cylinder diesel generator is a reliable solution for backup power supply for residential and commercial properties. It ensures uninterrupted operation and comfort even without centralized electricity, making it an ideal choice for households, construction sites or business facilities as a backup power source.
BRANDED ENGINE
The diesel generator engines are manufactured under license from DIMAX Int. GmbH and feature a power reserve relative to the generator, ensuring stable voltage across the entire operating range. These engines meet all European quality standards, including the latest EURO 5 environmental standard. The V-type two-cylinder engines are perfectly balanced, resulting in quieter operation and longer service life.
ATS CONNECTION CAPABILITY
The Automatic Transfer Switch (ATS) module automates the process of switching to backup power, eliminating the need for manual generator start and stop when mains power is restored.
BACKUP POWER SOURCE
The diesel generator provides a reliable backup power source, allowing operation of all essential appliances during power outages.
SMARTGEN MULTIFUNCTIONAL CONTROL UNIT
The SMARTGEN HGM501 multifunctional controller is an intelligent digital unit that allows selection of automatic or manual operating modes. It provides efficient control, monitors all key operating parameters and protects the generator during both autonomous and backup operation. In case of a fault, the engine shuts down immediately and the indicators signal issues such as low oil pressure, high or low voltage, frequency fluctuations, overload or overheating.
IMPROVED BATTERY
The 45 Ah battery provides sufficient starting current for fast and reliable starts, even at low temperatures, ensuring stable operation and long service life.
PREHEATING BEFORE START
The integrated preheating system automatically warms the air before starting, ensuring safe engine start and quick generator activation even in sub-zero temperatures.
EMERGENCY STOP BUTTON
The emergency stop button provides a quick and safe way to shut down generator operation in unforeseen situations.
SOUND-INSULATED ENCLOSURE
The high-quality sound-insulated enclosure features an improved design to maximize protection against external weather conditions and prevent moisture ingress. The dense insulation material significantly reduces noise levels during operation.
EASY TRANSPORTATION
The enclosure is equipped with six-inch and four-inch swivel wheels, making it easier to move the unit and ensuring secure positioning during operation. A wide handle on the top provides additional convenience.
WARRANTY AND SERVICE
HEAVY DUTY diesel generators are supplied with an extended 2-year warranty. The central warehouse is fully stocked with spare parts, and technical support is always available.
PACKAGE INCLUDES EVERYTHING REQUIRED
Accessory storage bag, oil filling funnel, portable power connector 230V (63A), 230V 32A connector, muffler and cylinder gaskets, fuel filter, open-end wrenches 10×12 mm and 14×17 mm, screwdriver.
Technical specification:
Voltage, V: 230
Max/rated power (230V), kVA: 16/15
Power factor, cosφ: 1
Frequency, Hz: 50**
Current (max), A: 69.56
Sockets: 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A
Fuel consumption, l/h: 3.36 (50% load)
LED display: Multifunctional digital controller HGM501
Noise level Lpa (7m)/Lwa, dB: 76/96
Engine type: Diesel, 2-cylinder, 4-stroke air-cooled
Engine model: KS 1400HD
Engine speed, rpm: 3000
Engine power, hp/kW: 30/22
Preheater: +
Fuel tank volume, l: 30
Engine oil volume, l: 4
Engine displacement, cm3: 1326
Voltage regulation: Intelligent AVR system
Engine start: Electric
Battery (Ah): 45
Battery charger: Integrated
ATS output: +
Protection class: IP23
Net dimensions (LxWxH), mm: 1320×820×880
Gross dimensions (LxWxH), mm: 1330×830×930
Net weight, kg: 360** - Product groups
-
