Generator Diesel Inverter KS 6500iDE S ATSR
- Info
-
Stock statusProduct IDKS6500iDES_ATSRManufacturerKönner & SöhnenCharacteristicsPower (kW): 6.5

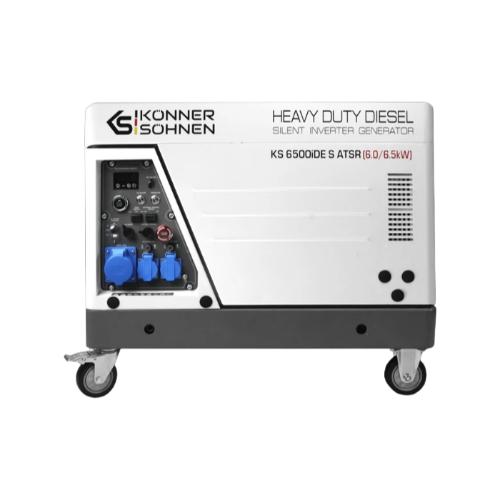

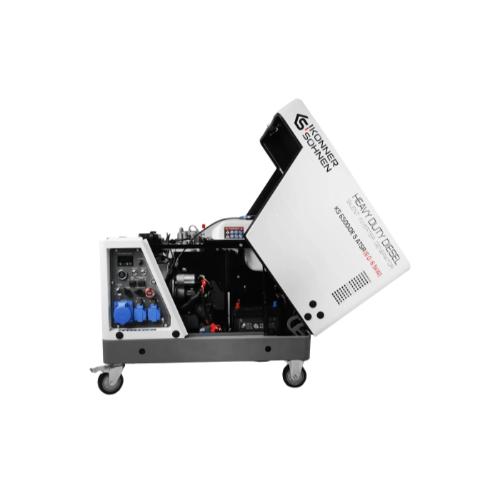

The Könner & Söhnen® KS 6500iDE S ATSR diesel inverter generator is a new model that combines modern inverter technology with a powerful diesel engine in a soundproof enclosure. This combination provides stable and clean power, fuel-efficient operation and a low noise level. The Könner & Söhnen® HEAVY DUTY generator delivers up to 6.5 kW maximum power and 6.0 kW rated power and is equipped with a EURO 5-compliant engine.
The generator supports ATS connection and external control and is equipped with a clear LED display, Start/Stop button and two remote controls for convenient operation. The preheating system and oil heater contribute to reliable starts even at low temperatures. The robust anti-vandal metal enclosure with a scratch-resistant coating also provides effective protection against external impact and damage.
INVERTER TECHNOLOGY WITH DIESEL ENGINE IN SOUNDPROOF ENCLOSURE
An innovative combination of inverter technology and a diesel engine that provides stable and clean electricity, fuel-efficient operation and low noise levels.
ATS CONNECTION (AUTOMATIC TRANSFER SWITCH)
The generator can be connected to an ATS system that automatically starts the generator when the mains power supply fails. This helps ensure a reliable and continuous power supply.
RELIABLE STARTING
The preheating system and oil heater help ensure fast and stable engine starting even at low temperatures.
EXTERNAL CONTROL SUPPORT
The generator can be connected to external control devices for start and stop functions. Via dry contacts, it can also be integrated with, for example, solar inverters, UPS systems and other automated systems.
REMOTE CONTROL
The supplied remote controls allow the generator to be started and stopped wirelessly for convenient operation.
START/STOP BUTTON
The easily accessible Start/Stop button allows the generator to be started or switched off quickly with a single press.
EMERGENCY STOP BUTTON
The emergency stop button allows the generator to be shut down immediately in an emergency, increasing safety for both the user and the equipment.
SOUNDPROOF AND ANTI-VANDAL ENCLOSURE
The robust metal enclosure reduces noise while protecting the generator from external impact and mechanical damage. The construction is designed for safe and reliable operation in varying weather conditions throughout the year.

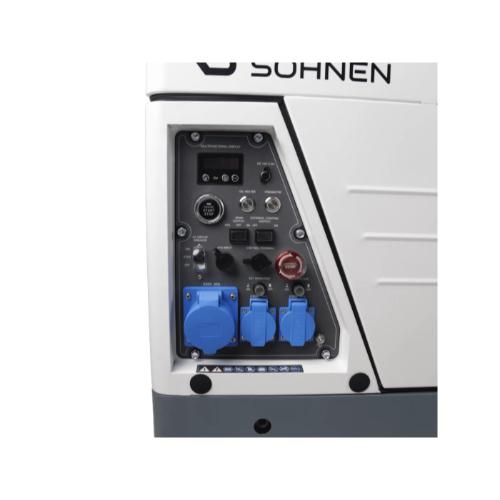

ERGONOMIC CONTROL PANEL
The well-organised control panel provides easy access to the generator’s main functions. The multifunctional LED display shows key parameters such as voltage, frequency, operating hours and current running time, making it easy to monitor the generator’s status and plan maintenance.
TECHNICAL SPECIFICATION:
- Voltage: 230 V
- Max./rated power (230V): 6.5/6.0 kW
- Power factor: cosφ 1
- Frequency: 50 Hz
- Current (max.): 28.3 A
- Sockets: 2 × Schuko 230V 16A, 1 × CEE 230V 32A
- Fuel consumption: 1.2 l/h
- LED display: Multifunctional – voltage, power, oil level, fuel level, running time, total operating time and frequency
- Noise level Lpa (7 m)/Lwa: 69/97 dB
- Engine type: Diesel, 1-cylinder, 4-stroke, air-cooled
- Engine model: KS 520iD
- Engine power: 11.5 hp / 8.5 kW
- Preheater: Yes, air and oil
- External charging connection: DC5521
- Fuel tank capacity: 25 l
- Engine oil capacity: 1.65 l
- Engine displacement: 498 cm³
- Engine start: Manual / electric / remote control
- Battery: Lead-acid 12V 36Ah
- ATS output: Yes
- Protection class: IP23M
- Includes: Generator, packaging, user manual, 14–17 mm wrench, 10–12 mm wrench, GX20 plug, upper cover key, reversible screwdriver, 2 × portable 230V 16A power plugs, portable 230V 32A power plug, 2 × remote controls, extended funnel, battery charging cable and 4 × transport wheels
- Dimensions (L × W × H): 870 × 580 × 765 mm
- Net weight: 119 kg
- Gross weight: 139 kg - Product groups
-
