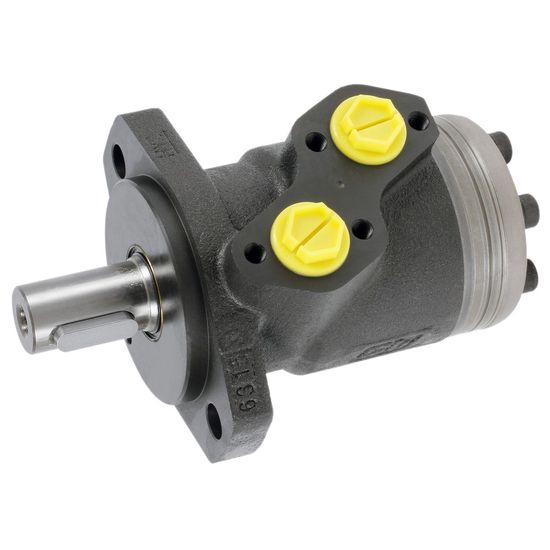

Hydraulic Motor Hmp 200

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMP200

  ManufacturerAGRILIFE

  CharacteristicsAxle diameter 25 mm
  Displacement 194.4 cm³

  - 25 mm shaft with woodruff keyway
  - connections G 1/2"
  - drain connection G 1/4"
  - Danfoss OMP interchangeable
  - combines high torque with compact size
  - applications: for example, agricultural machinery, sand spreaders, hydraulic saws, slurry pumps
  - displacement 194.4 cm³/rev
  - max. speed continuously 305 / intermittent 380 rpm
  - max. continuous torque 300 / intermittent 390 Nm
  - max. continuous power 8 / intermittent 15 kW
  - max. pressure continuously 165 / intermittent 200 / peak 225 bar
  - max. differential pressure continuously 115 / intermittent 160 / peak 200 bar
  - max. flow continuously 60 / intermittent 75 l/min

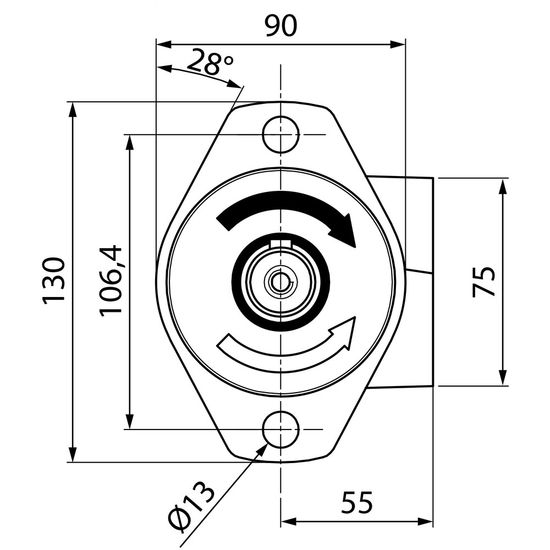

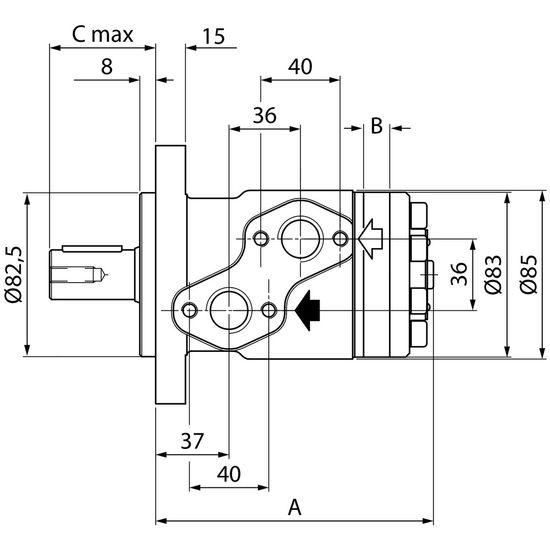

  - A 146.5 mm
  - B 25.5 mm
  - C 53.5 mm
  - weight 6.3 kg
