  Product IDHMR250

  ManufacturerAGRILIFE

  CharacteristicsAxle diameter 25 mm
  Displacement 250 cm³

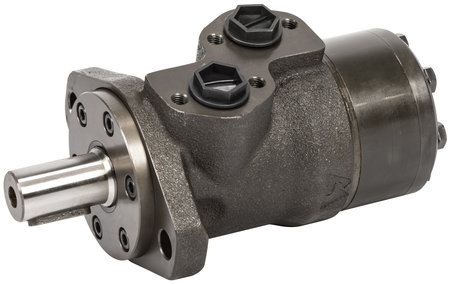

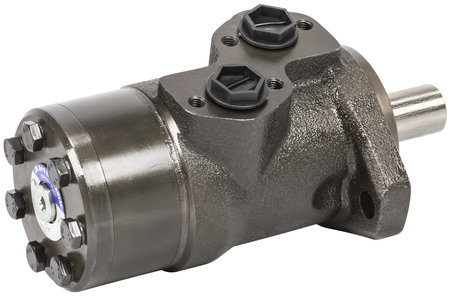

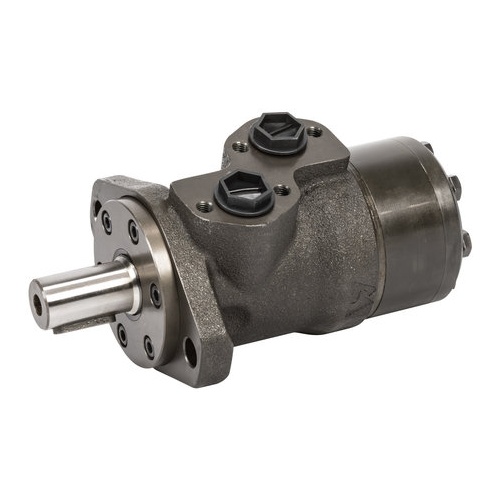

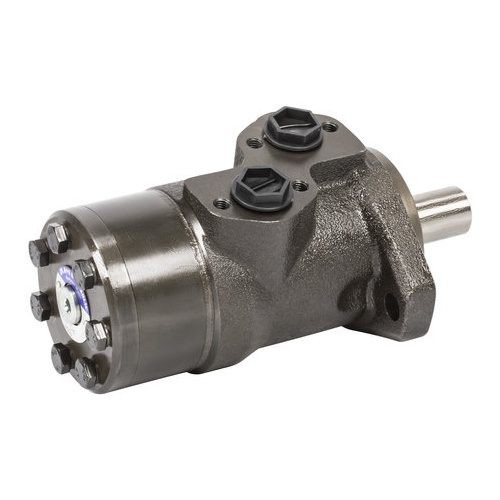

  - High-quality M+S orbital motor suitable for a wide range of applications, e.g. agricultural machinery, sand spreaders, circular saws, slurry pumps, conveyors, etc.
  - The MR model is a more advanced version offering good pressure resistance and higher efficiency
  - Combines high torque with compact size
  - Interchangeable with Danfoss OMR
  - 25 mm shaft with keyway, A8x7x32 DIN6885
  - Connections G 1/2"
  - Drain connection G 1/4"
  - Displacement 250.1 cm³/rev
  - Max. speed continuous 240 / intermittent 300 rpm
  - Max. torque continuous 390 / intermittent 470 Nm
  - Max. power continuous 8 / intermittent 9.5 kW
  - Max. pressure continuous 175 / intermittent 200 / peak 225 bar
  - Max. flow continuous 60 / intermittent 75 l/min

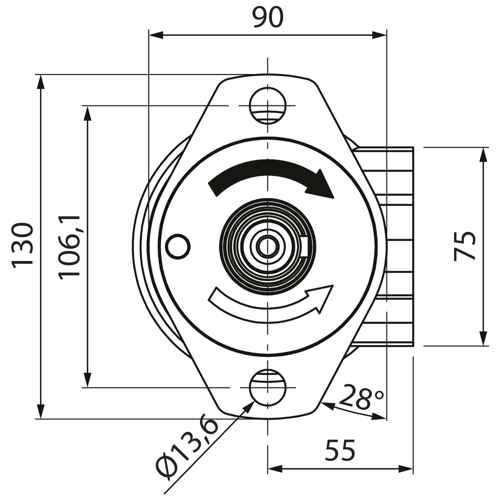

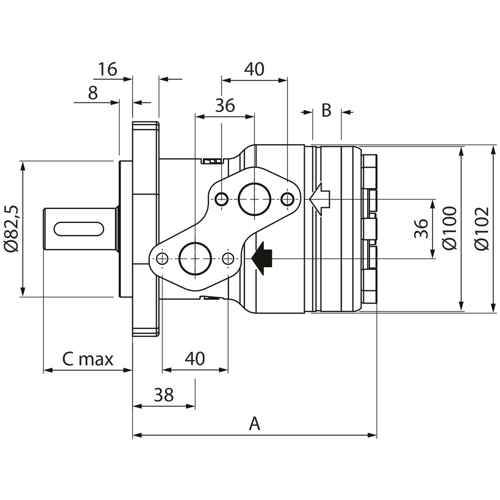

  - A 172 mm
  - B 43.5 mm
  - C 55 mm
  - Weight 8.4 kg
