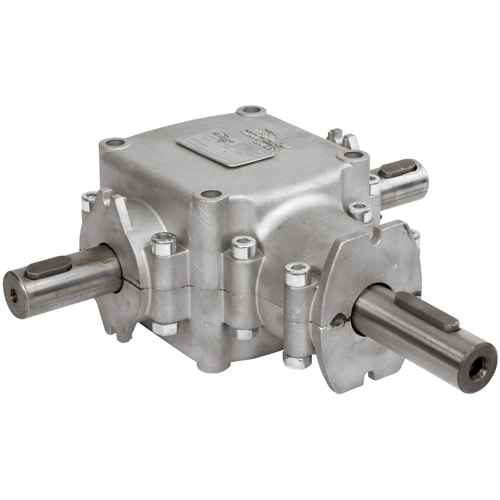

Angle Gear R035 1.92:1

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDR0350348

  ManufacturerREDUCO

  Characteristics- Power range 6-9 kW / 8-12 HP
  - Gear ratio 1.92:1

  - power class 6-9 kW / 8-12 HP
  - weight 4.5 kg
  - gear ratio 1.92:1

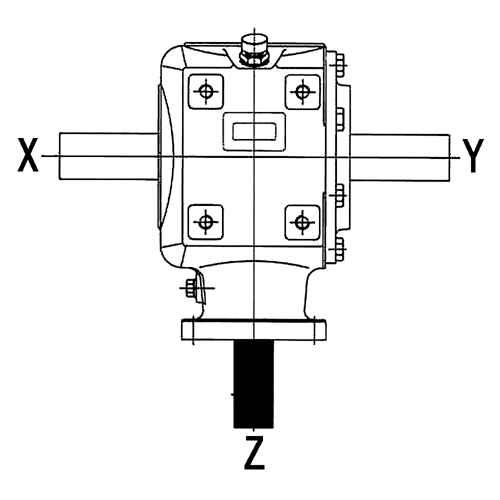

  - X = Ø 25 h7
  - Z = Ø 25 h7
  - Y = Ø 25 h7
  - driving shaft Z
  - power transmission max. 540 rpm / 6 kW / 8 HP / 10 daNm 1000 rpm / 9 kW / 12 HP / 9 daNm

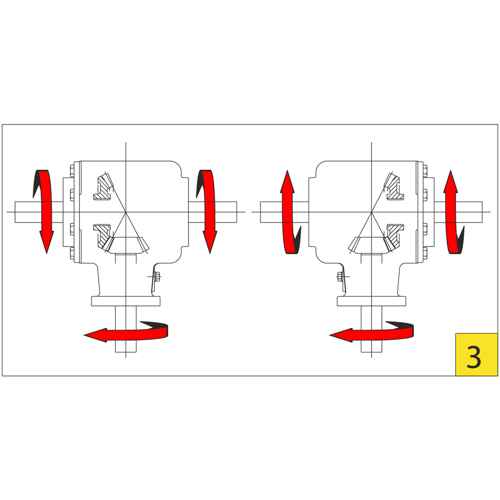

  - rotation direction 3
  - 3 driving shafts
  - suitable grease NLGI.00EP

  Note! Aluminum angle gears are delivered with oil from the factory
