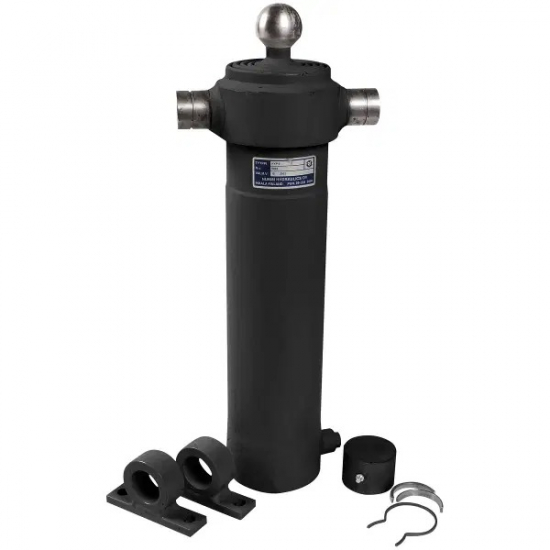

Tip Cylinder 6TN 1540/110 Upper Bracket

• Info
• Stock status

  Product ID5002NYP5

  Manufacturer

  Characteristics

  - High-quality Finnish product from the Nordic region's largest manufacturer
  - Cylinder tube: cold-rolled polished high-quality tube (note that the tube is not coated, so it is not recommended for use, for example, in trucks, and it is not recommended to leave the tipper upright for a long time)
  - Seals: high-quality PUR seals and wipers, wide guide rings support the structure and prevent sticking
  - All cylinders have the same installation length, so the cylinders are interchangeable
  - Mountings included

  Technical data:
  - Connection thread R 1/2"
  - Pin size 40 mm, length 35 mm
  - Barrel Ø 110 mm
  - Movable tube Ø 95, 80, 65, 50 mm
  - Stroke 1540 mm
  - Oil volume 6.7 l
  - Max. bed length 4.5 m
  - Maximum working pressure 210 bar
  - Pressure force 160 bar 6 tons
  - Dimensions L1 1600 mm

  Note! When installing the tipper, make sure the first tube extends about 20 mm. This has been taken into account in the assembly and dimension drawings.
