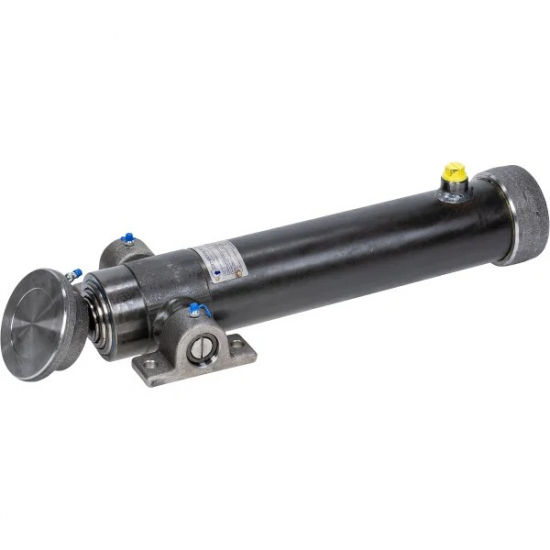

TIPPING CYLINDER 6TN 583-1283MM TOP MOUNT

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKSNAK2337S

  Manufacturer

  Characteristics

  - The moving tubes operate "steel against steel", resulting in less swaying during extension
  - Tenifer®-treated tubes provide excellent corrosion and wear resistance, low internal friction without separate guide rings or bushings
  - No separate locking rings at the lower ends of the moving tubes; the tubes ensure safe operation all the way to the end of the stroke
  - The roughness of the tube surfaces is 0.20 micrometres, resulting in very low seal wear
  - Operating temperature for seals: -40...+110 °C

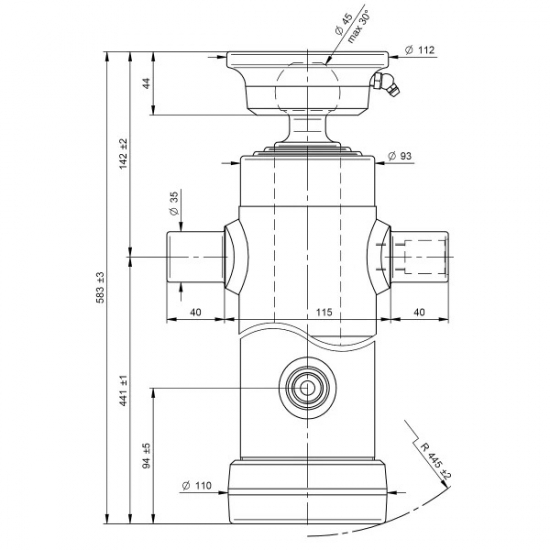

  Technical data:
  Max. working pressure: 220 bar
  Threaded rear end, easy to dismantle and maintain
  Stroke length: 1283 mm
  Capacity: 5 t (180 bar)
  Outer tube diameter: Ø 93 mm
  Mounting length: 162 mm (incl. 20 mm movement allowance with the tipping body lowered), measured from the centre of the upper mounting pins to the top edge of the cup
  Minimum length fully retracted: 583 mm
  Mounting pin Ø: 35 mm
  Hydraulic connection: BSP 1/2"
  Oil volume: 4 l
  Moving tubes: 46 / 61 / 76 mm
  Weight: 26 kg

  More information:
  The tipping cylinders are primarily intended for agricultural use. The corrosion resistance of the cylinder tubes is not as high as that of cylinders intended for trucks. They are not suitable for constant exposure to moisture or road salt, and the tipping body should not be kept raised for longer periods, as this leaves the cylinder tubes unprotected. If you need cylinders with a more durable surface treatment, please ask for these options separately.
