  Product ID87000841

  Manufacturer

  CharacteristicsShaft diameter (mm): 32
  Displacement (cm³): 203

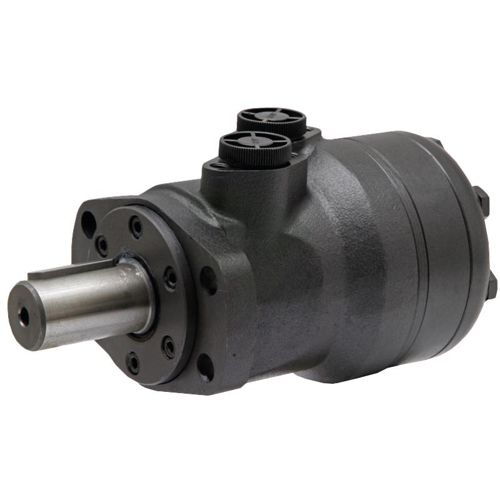

  High-performance Motor BMH 200, perfect for industrial hydraulic systems.

  Volume flow max. (l/min): 75
  Axis Ø (mm): 32
  Volume (cm³): 203
  Reference no. Danfoss: 151H1002
  Connection A-B (BSP): 1/2"
  L (mm): 168
  Input pressure (bar): 200
  Speed max. (v/min): 366
  Performance max. (kW): 16
  Leak oil connection: G 1/4"
  L1 (mm): 27
  Connection: G 1/2"
  Pressure difference (bar): 175
  Torque max. (Nm): 510
