Engine BMH 315

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000843

  Manufacturer

  CharacteristicsShaft diameter (mm): 32
  Displacement (cm³): 316

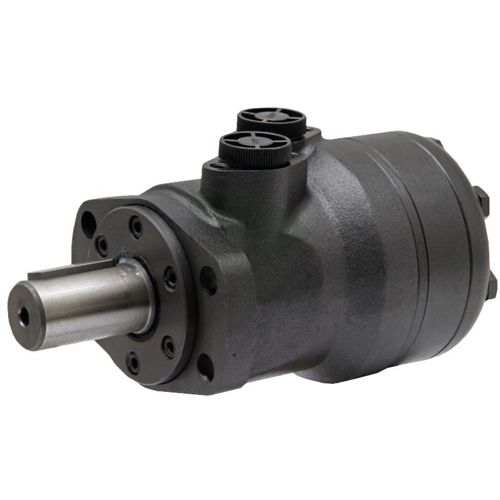

  Motor BMH 315, adapted for robust performance and long lifespan.

  Performance max. (kW): 14
  Reference no. Danfoss: 151H1004
  Speed max. (v/min): 236
  Volume (cm³): 316
  Torque max. (Nm): 740
  Connection A-B (BSP): 1/2"
  Axis Ø (mm): 32
  L (mm): 184
  Pressure difference (bar): 155
  Leak oil connection: G 1/4"
  L1 (mm): 42
  Connection: G 1/2"
  Input pressure (bar): 200
  Volume flow max. (l/min): 75
