Engine BMH 500

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000845

  Manufacturer

  CharacteristicsShaft diameter (mm): 32
  Displacement (cm³): 489

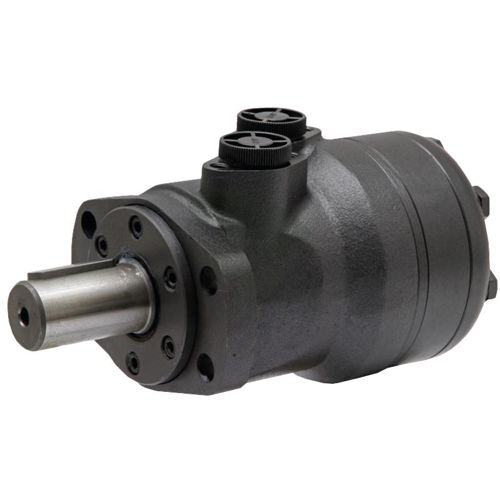

  Durable Motor BMH 500, perfect for applications with high load.

  Pressure difference (bar): 125
  Torque max. (Nm): 830
  Connection A-B (BSP): 1/2"
  Leak oil connection: G 1/4"
  L (mm): 206
  Axis Ø (mm): 32
  Volume (cm³): 489
  Input pressure (bar): 200
  Performance max. (kW): 11
  Reference no. Danfoss: 151H1006
  Volume flow max. (l/min): 75
  L1 (mm): 65
  Connection: G 1/2"
  Speed max. (v/min): 155
